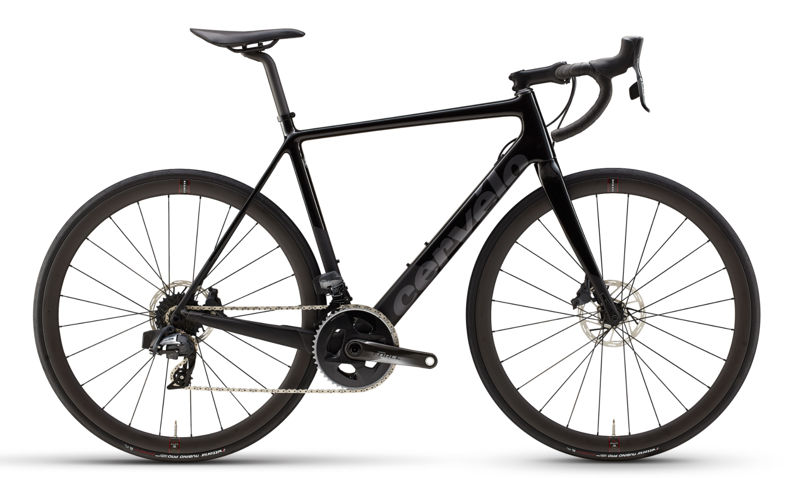

2020 Cervelo R-Series geometry
Full frame geometry for the 2020 Cervelo R-Series, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 505 | 360 | 73 | 71 | 89 | 515 | 693 | 74.5 | 579.4 | 410 | 972 | 57 |
| 51 | 530 | 369 | 73 | 72 | 110 | 532 | 723 | 74.5 | 581.7 | 410 | 974 | 57 |
| 54 | 555 | 378 | 73 | 73 | 133 | 548 | 753 | 72 | 591.5 | 410 | 973 | 57 |
| 56 | 580 | 387 | 73 | 73 | 159 | 563 | 784 | 72 | 608.5 | 410 | 993 | 57 |
| 58 | 605 | 396 | 73 | 73 | 188 | 581 | 815 | 69.5 | 626 | 410 | 1011 | 57 |
| 61 | 630 | 405 | 73 | 73 | 214 | 597 | 846 | 69.5 | 643 | 410 | 1027 | 57 |
All measurements in millimetres unless marked (°) for angles.
