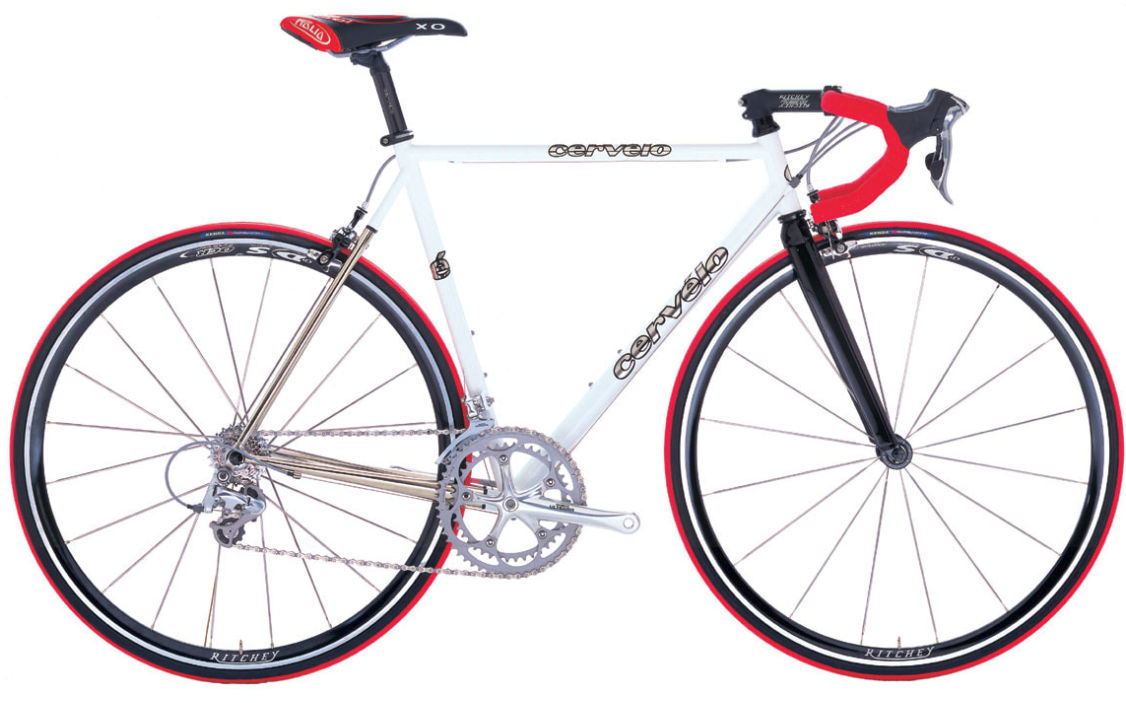

2005 Cervelo Prodigy geometry
Full frame geometry for the 2005 Cervelo Prodigy, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 493 | 364 | 73.5 | 72.5 | 90 | 510 | 743 | 68 | 543 | 400 | 933 | 43 | 60 |
| 51 | 504 | 376 | 73.5 | 73 | 100 | 525 | 763 | 68 | 558 | 400 | 948 | 43 | 57 |
| 54 | 524 | 385 | 73.5 | 73 | 120 | 540 | 782 | 68 | 573 | 400 | 963 | 43 | 57 |
| 56 | 543 | 399 | 73.5 | 73 | 140 | 560 | 801 | 68 | 593 | 400 | 983 | 43 | 57 |
| 58 | 562 | 409 | 73.5 | 73 | 160 | 575 | 820 | 68 | 608 | 400 | 998 | 43 | 57 |
| 61 | 581 | 415 | 73.5 | 73 | 180 | 587 | 839 | 68 | 620 | 400 | 1010 | 43 | 57 |
All measurements in millimetres unless marked (°) for angles.
