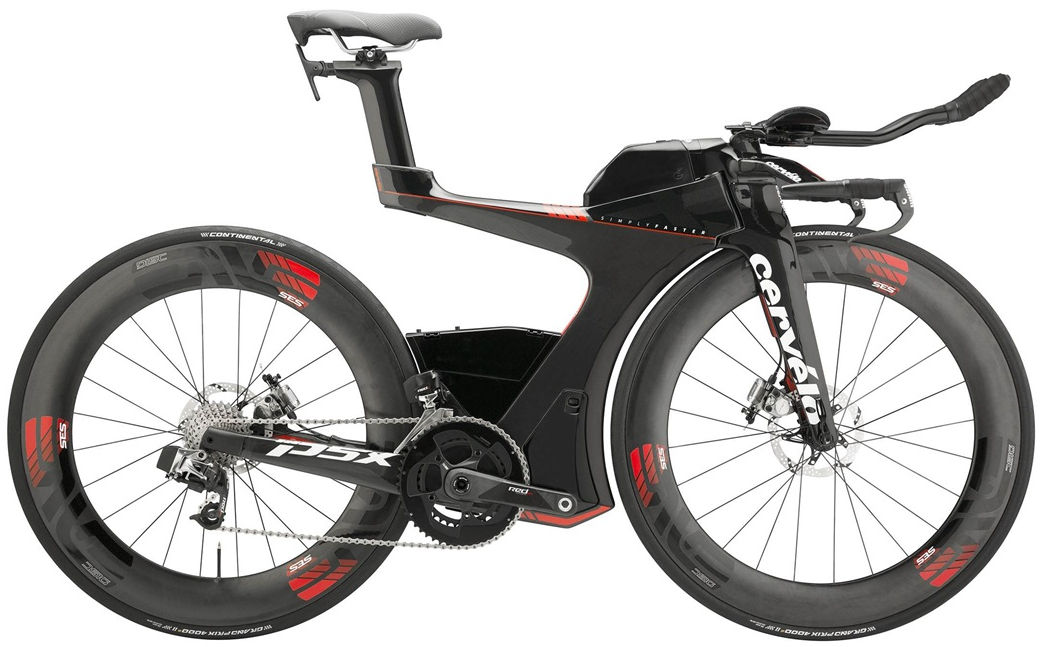

2017 Cervelo P5X geometry
Full frame geometry for the 2017 Cervelo P5X, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 468 | 386 | 77.5 | 71 | 76 | 689 | 75 | 582 | 405 | 53 |
| M | 496 | 404 | 77.5 | 72.5 | 97 | 702 | 75 | 587 | 405 | 43 |
| L | 524 | 423 | 77.5 | 72.5 | 126 | 746 | 75 | 614 | 405 | 43 |
| XL | 552 | 442 | 77.5 | 72.5 | 156 | 775 | 75 | 642 | 405 | 43 |
All measurements in millimetres unless marked (°) for angles.
