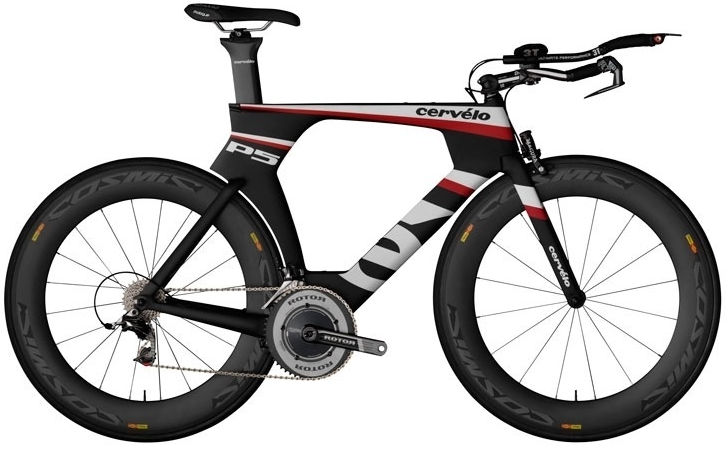

2012 Cervelo P5-Three geometry
Full frame geometry for the 2012 Cervelo P5-Three, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 485 | 381 | 78 | 72 | 128 | 511 | 480 | 746 | 50 | 567 | 399 | 961 | 40 | 59 |
| 51 | 506 | 397 | 78 | 72.5 | 97 | 533 | 510 | 768 | 75 | 583 | 399 | 970 | 43 | 60 |
| 54 | 522 | 411 | 78 | 72.5 | 114 | 551 | 540 | 784 | 75 | 602 | 399 | 989 | 43 | 60 |
| 56 | 540 | 425 | 78 | 72.5 | 133 | 570 | 560 | 802 | 75 | 622 | 399 | 1009 | 43 | 60 |
| 58 | 559 | 437 | 78 | 72.5 | 153 | 587 | 580 | 821 | 75 | 640 | 399 | 1027 | 43 | 60 |
| 61 | 588 | 446 | 78 | 72.5 | 183 | 604 | 610 | 850 | 75 | 658 | 399 | 1046 | 43 | 60 |
All measurements in millimetres unless marked (°) for angles.
