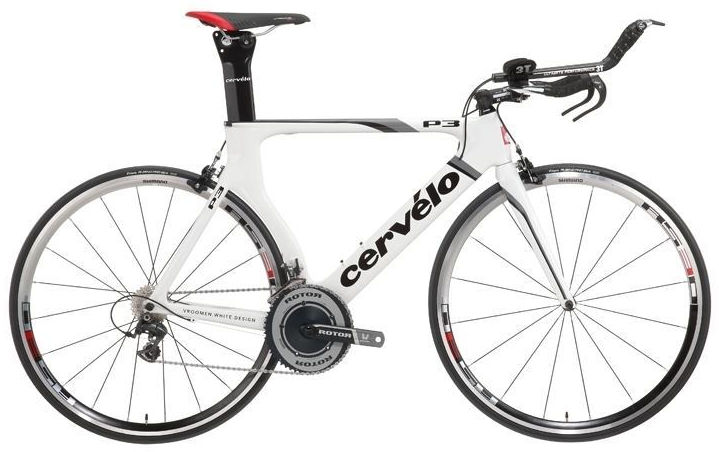

2006 Cervelo P3 MKI geometry

Name: 2006 Cervelo P3 MKI
Brand: Cervelo

Full frame geometry for the 2006 Cervelo P3 MKI, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)	Trail (mm)
48	461	389	78	72	110	490	480	716	43	568	368	932	40	59
51	482	405	78	72.5	90	510	510	746	60	586	380	958	43	60
54	498	419	78	72.5	105	530	540	762	60	609	380	981	43	60
56	516	433	78	72.5	125	545	560	780	60	626	380	998	43	60
58	535	445	78	72.5	145	560	580	799	60	643	380	1015	43	60
61	564	454	78	72.5	175	574	610	828	60	659	380	1031	43	60

All measurements in millimetres unless marked (°) for angles.
