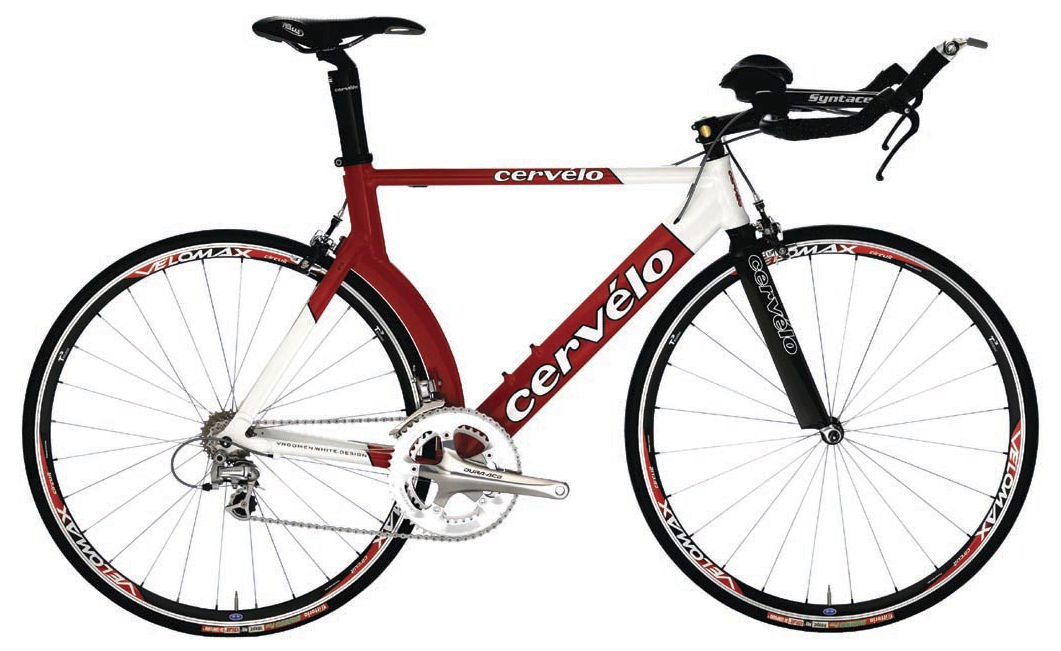

2004 Cervelo P3 Al MKII geometry

Name: 2004 Cervelo P3 Al MKII
Brand: Cervelo

Full frame geometry for the 2004 Cervelo P3 Al MKII, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)	Trail (mm)
48	451	392	78	72.5	100	490	480	707	43	564	368	928	40	56
51	470	407	78	72.5	120	510	510	726	43	585	368	949	40	56
52	483	416	78	73	90	520	520	747	60	593	368	953	43	57
54	489	422	78	72.5	140	530	540	742	43	606	368	970	40	56
55	507	430	78	73	115	540	550	771	60	614	368	974	43	57
58	531	445	78	73	140	560	580	795	60	637	380	1009	43	57
61	555	454	78	73	165	574	610	819	60	653	380	1025	43	57

All measurements in millimetres unless marked (°) for angles.
