2000 Cervelo P3 Al MKI geometry

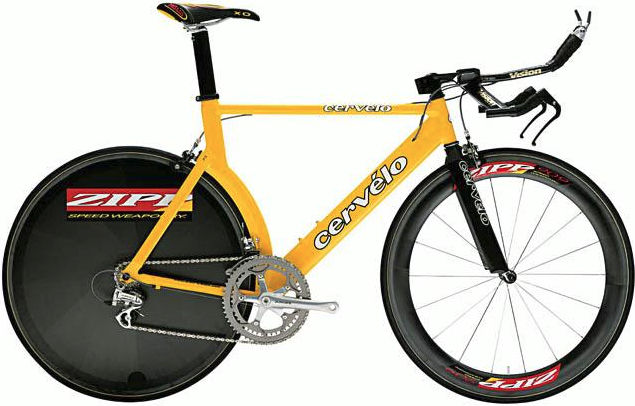

Name: 2000 Cervelo P3 Al MKI
Brand: Cervelo

Full frame geometry for the 2000 Cervelo P3 Al MKI, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)	Trail (mm)
48	441	401	78	72.5	90	495	480	724	43	569	368	933	40	56
51	455	420	78	72.5	105	517	510	746	43	592	368	956	40	56
54	469	439	78	72.5	120	539	540	768	43	615	368	979	40	56
52	487	424	78	73	90	527	520	776	60	601	368	961	43	57
55	492	441	78	73	95	545	550	793	60	619	368	979	43	57
57	498	451	78	72.5	150	557	570	798	43	639	368	1003	40	56
58	516	453	78	73	120	563	580	821	60	639	368	999	43	57
61	539	470	78	73	145	585	610	848	60	668	368	1028	43	57

All measurements in millimetres unless marked (°) for angles.
