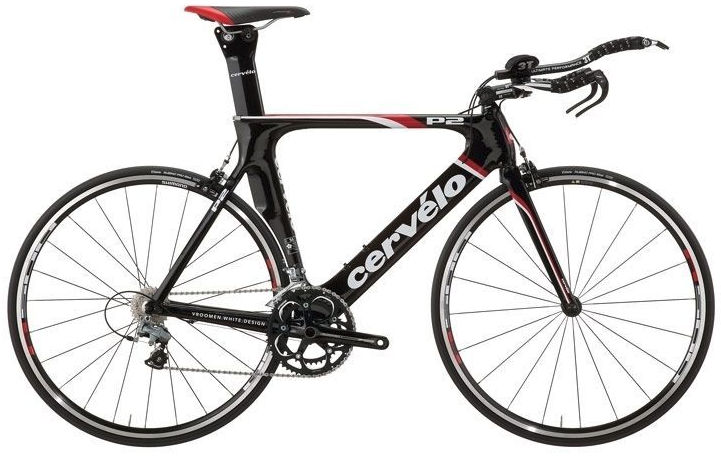

2013 Cervelo P2 MKI geometry
Full frame geometry for the 2013 Cervelo P2 MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 461 | 389 | 78 | 72 | 110 | 490 | 480 | 716 | 43 | 568 | 368 | 932 | 40 | 59 |
| 51 | 482 | 405 | 78 | 72.5 | 90 | 510 | 510 | 746 | 60 | 586 | 380 | 958 | 43 | 60 |
| 54 | 512 | 418 | 78 | 72.5 | 120 | 530 | 540 | 776 | 60 | 609 | 380 | 981 | 43 | 60 |
| 56 | 531 | 429 | 78 | 72.5 | 140 | 545 | 560 | 795 | 60 | 628 | 380 | 1000 | 43 | 60 |
| 58 | 550 | 440 | 78 | 72.5 | 160 | 560 | 580 | 815 | 60 | 643 | 380 | 1015 | 43 | 60 |
| 61 | 577 | 447 | 78 | 72.5 | 190 | 574 | 610 | 840 | 60 | 659 | 380 | 1031 | 43 | 60 |
All measurements in millimetres unless marked (°) for angles.
