2000 Cervelo · T

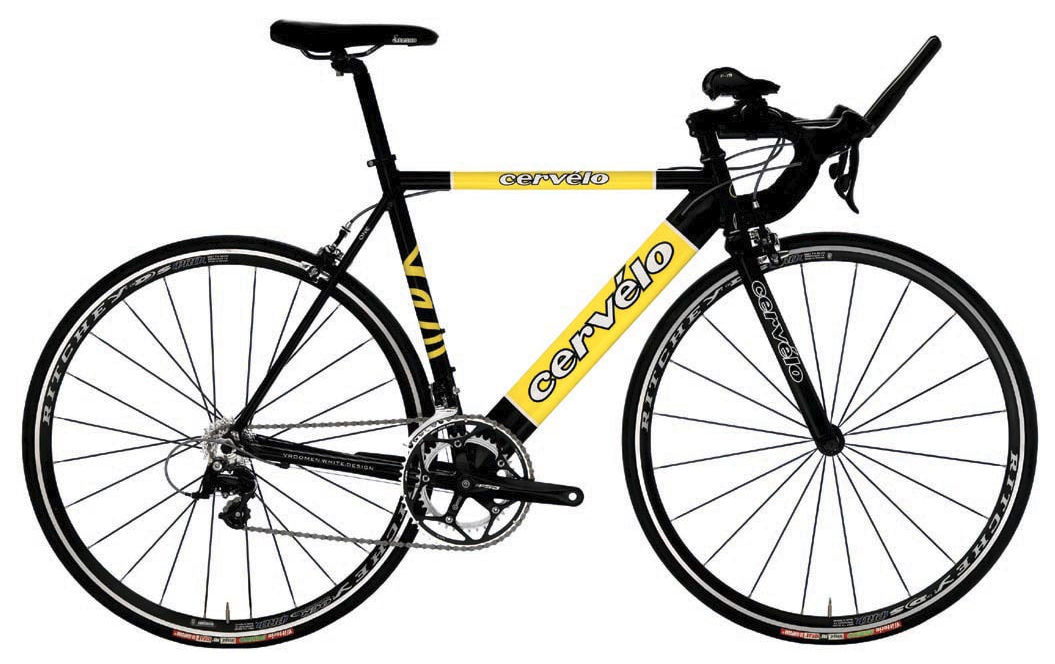

2000 Cervelo One geometry
Full frame geometry for the 2000 Cervelo One, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 473 | 373 | 75 | 72 | 110 | 495 | 727 | 43 | 557 | 368 | 921 |
| 51 | 498 | 388 | 75 | 72.5 | 90 | 515 | 762 | 60 | 574 | 387 | 953 |
| 54 | 514 | 404 | 75 | 72.5 | 110 | 535 | 778 | 60 | 595 | 387 | 974 |
| 56 | 533 | 413 | 75 | 72.5 | 130 | 550 | 798 | 60 | 611 | 387 | 990 |
| 58 | 552 | 423 | 75 | 72.5 | 150 | 565 | 817 | 60 | 629 | 387 | 1008 |
| 61 | 581 | 430 | 75 | 72.5 | 180 | 579 | 846 | 60 | 642 | 387 | 1022 |
All measurements in millimetres unless marked (°) for angles.
