2002 Cervelo Dual geometry

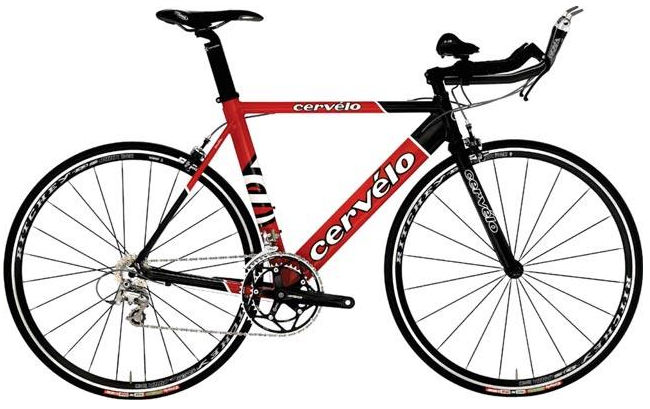

Name: 2002 Cervelo Dual
Brand: Cervelo

Full frame geometry for the 2002 Cervelo Dual, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)	Trail (mm)
48	461	389	78	72	110	490	480	716	43	568	368	932	40	59
51	482	405	78	72.5	90	510	510	746	60	586	387	965	43	60
54	512	418	78	72.5	120	530	540	776	60	609	387	988	43	60
56	531	429	78	72.5	140	545	560	795	60	626	387	1005	43	60
58	550	440	78	72.5	160	560	580	815	60	643	387	1023	43	60
61	577	448	78	72.5	190	574	610	840	60	659	387	1039	43	60

All measurements in millimetres unless marked (°) for angles.
