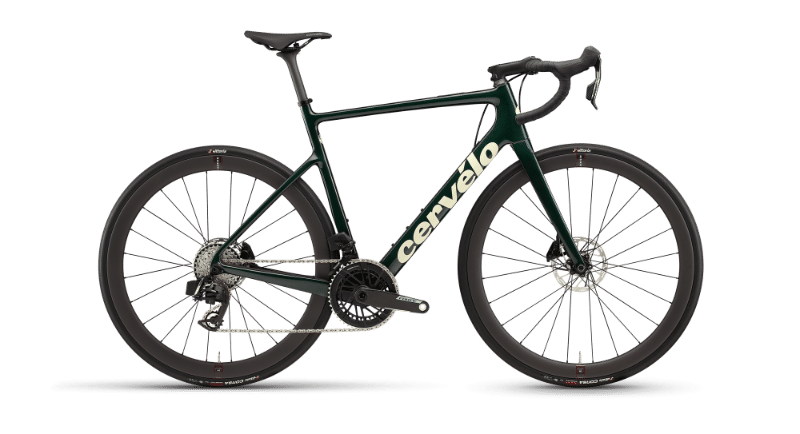

2025 Cervelo Caledonia geometry
Full frame geometry for the 2025 Cervelo Caledonia, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 505 | 360 | 74.5 | 70.5 | 89.5 | 502 | 701 | 76.5 | 579.4 | 415 | 982.2 | 59 | 60 |
| 51 | 530 | 369 | 74 | 71.5 | 109.9 | 522 | 741 | 76.5 | 581.7 | 415 | 984.5 | 53 | 60 |
| 54 | 555 | 378 | 73.5 | 72 | 136 | 543 | 773 | 74 | 591.5 | 415 | 995.2 | 50 | 60 |
| 56 | 580 | 387 | 73 | 72 | 162.3 | 565 | 796 | 74 | 608.5 | 415 | 1012.3 | 50 | 60 |
| 58 | 605 | 396 | 73 | 72 | 191.2 | 581 | 823 | 71.5 | 626 | 415 | 1030.7 | 50 | 60 |
| 61 | 630 | 405 | 73 | 72 | 217.5 | 598 | 847 | 71.5 | 643 | 415 | 1047.8 | 50 | 60 |
All measurements in millimetres unless marked (°) for angles.
