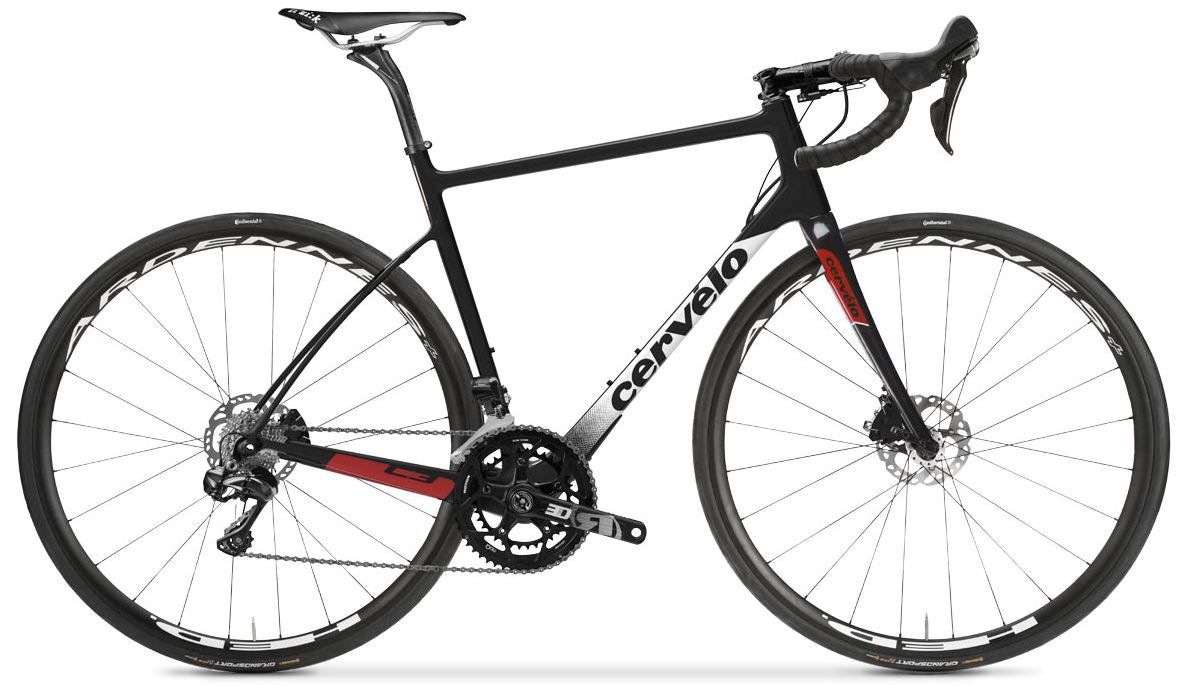

2016 Cervelo C-Series geometry
Full frame geometry for the 2016 Cervelo C-Series, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 527 | 352 | 73 | 70 | 115 | 515 | 765 | 78 | 586 | 420 | 994 | 62 | 56 |
| 51 | 549 | 362 | 73 | 70 | 138 | 531 | 786 | 78 | 604 | 420 | 1012 | 62 | 56 |
| 54 | 572 | 372 | 73 | 71.1 | 153 | 548 | 808 | 75 | 598 | 420 | 1007 | 53 | 58 |
| 56 | 595 | 382 | 73 | 71.5 | 180 | 565 | 830 | 75 | 616 | 420 | 1025 | 53 | 56 |
| 58 | 618 | 391 | 73 | 71.5 | 204 | 581 | 853 | 73 | 633 | 420 | 1043 | 53 | 56 |
| 61 | 641 | 400 | 73 | 71.5 | 229 | 597 | 875 | 73 | 650 | 420 | 1060 | 53 | 56 |
All measurements in millimetres unless marked (°) for angles.
