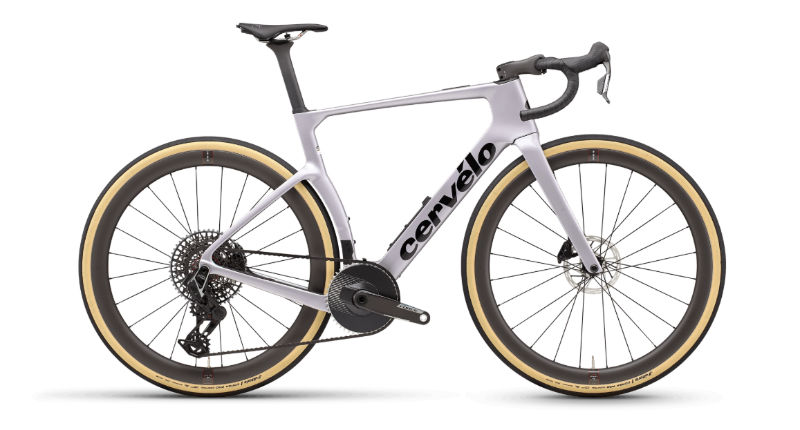

2025 Cervelo Aspero 5(Balanced) geometry
Full frame geometry for the 2025 Cervelo Aspero 5(Balanced), size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 500 | 369 | 74.1 | 70.6 | 75 | 516 | 720 | 80 | 584 | 423 | 993 | 57.5 |
| 51 | 525 | 377 | 73.6 | 71.1 | 99 | 531 | 753 | 80 | 593 | 423 | 1002 | 54.5 |
| 54 | 550 | 386 | 73.1 | 71.6 | 122 | 552 | 779 | 80 | 602 | 423 | 1012 | 51.5 |
| 56 | 575 | 395 | 72.6 | 71.6 | 148 | 574 | 801 | 80 | 619 | 423 | 1029 | 51.5 |
| 58 | 600 | 404 | 72.6 | 71.6 | 177 | 591 | 826 | 78 | 636 | 423 | 1047 | 51.5 |
| 61 | 625 | 413 | 72.6 | 71.6 | 203 | 607 | 851 | 78 | 653 | 423 | 1064 | 51.5 |
All measurements in millimetres unless marked (°) for angles.
