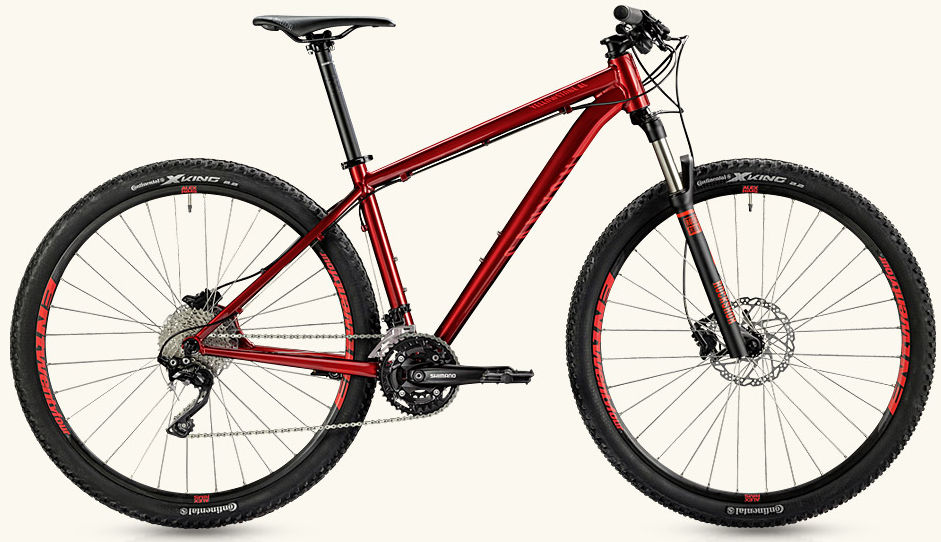

2015 Canyon Yellowstone AL 29 geometry
Full frame geometry for the 2015 Canyon Yellowstone AL 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS/15 | 588 | 375 | 73 | 70 | 100 | 555 | 360 | 749 | 48 | 430 | 1047 |
| S/16.5 | 621 | 390 | 73 | 70 | 100 | 580 | 405 | 785 | 65 | 446 | 1087 |
| M/18.5 | 626 | 399 | 73 | 70 | 110 | 590 | 445 | 813 | 65 | 446 | 1099 |
| L/20 | 640 | 414 | 73 | 70 | 125 | 610 | 485 | 841 | 65 | 446 | 1120 |
| XL/22 | 654 | 430 | 73 | 70 | 140 | 630 | 545 | 877 | 65 | 446 | 1141 |
All measurements in millimetres unless marked (°) for angles.
