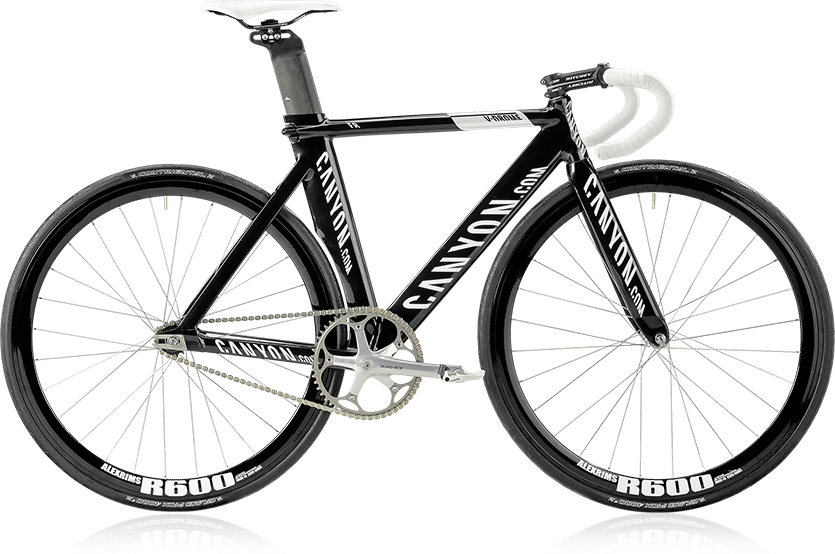

2014 Canyon V-Drome AL geometry
Full frame geometry for the 2014 Canyon V-Drome AL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 483 | 365 | 73.2 | 100 | 490 | 465 | 50 | 537 | 365 | 897 | 42 | 57 |
| S | 505 | 380 | 73.2 | 122 | 511 | 489 | 50 | 559 | 365 | 918 | 42 | 57 |
| M | 527 | 395 | 73.8 | 144 | 531 | 529 | 50 | 575 | 365 | 935 | 42 | 54 |
| L | 549 | 410 | 74.1 | 166 | 552 | 555 | 50 | 594 | 365 | 953 | 42 | 52 |
| XL | 571 | 425 | 74.4 | 188 | 573 | 570 | 50 | 612 | 365 | 972 | 42 | 50 |
All measurements in millimetres unless marked (°) for angles.
