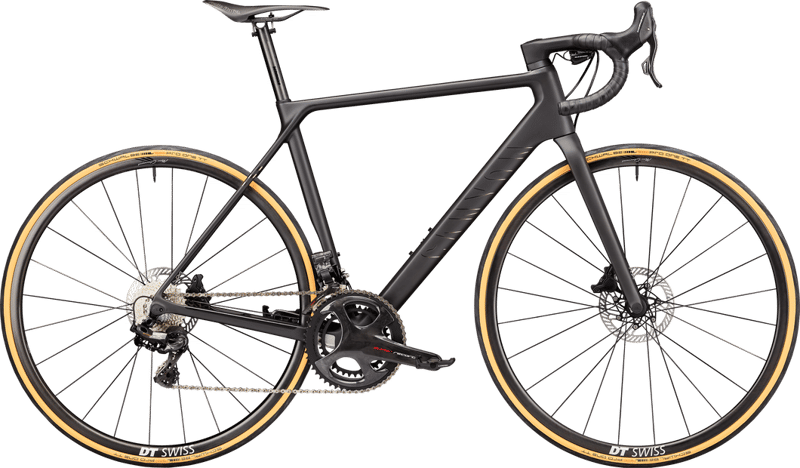

2021 Canyon Ultimate CFR Disc geometry
Full frame geometry for the 2021 Canyon Ultimate CFR Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 522 | 378 | 73.8 | 71 | 107 | 529 | 467 | 748 | 72 | 415 | 988 |
| S | 546 | 385 | 73.8 | 72.3 | 130 | 543 | 494 | 775 | 70 | 416 | 993 |
| M | 567 | 391 | 73.8 | 73.3 | 148 | 556 | 522 | 801 | 70 | 416 | 996 |
| 2XS | 600 | 368 | 73.9 | 69.6 | 89 | 613 | 434 | 720 | 72 | 415 | 983 |
| XL | 613 | 418 | 73.8 | 73.6 | 195 | 596 | 584 | 851 | 70 | 415 | 1 |
| L | 692 | 399 | 73.8 | 73.3 | 174 | 571 | 654 | 828 | 70 | 416 | 1 |
All measurements in millimetres unless marked (°) for angles.
