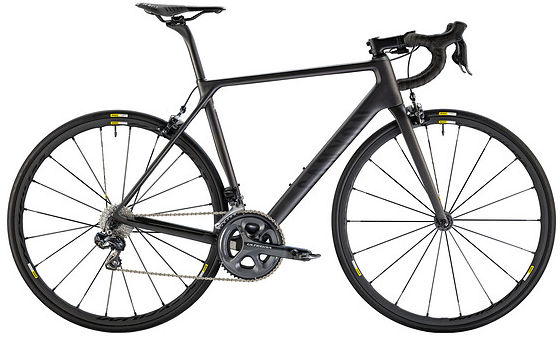

2017 Canyon Ultimate CF SLX geometry
Full frame geometry for the 2017 Canyon Ultimate CF SLX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2XS | 500 | 368 | 73.5 | 69.6 | 94 | 513 | 432 | 735 | 68 | 410 | 975 |
| XS | 522 | 378 | 73.5 | 71 | 113 | 530 | 462 | 762 | 68 | 410 | 980 |
| S | 546 | 385 | 73.5 | 72.2 | 136 | 544 | 492 | 790 | 68 | 410 | 985 |
| M | 567 | 391 | 73.5 | 73.2 | 155 | 556 | 522 | 816 | 68 | 410 | 988 |
| L | 592 | 399 | 73.5 | 73.2 | 181 | 571 | 552 | 844 | 68 | 410 | 1003 |
| XL | 613 | 418 | 73.5 | 73.5 | 204 | 596 | 582 | 870 | 68 | 410 | 1026 |
| 2XL | 631 | 428 | 73.5 | 73.5 | 222 | 611 | 612 | 895 | 68 | 410 | 1039 |
All measurements in millimetres unless marked (°) for angles.
