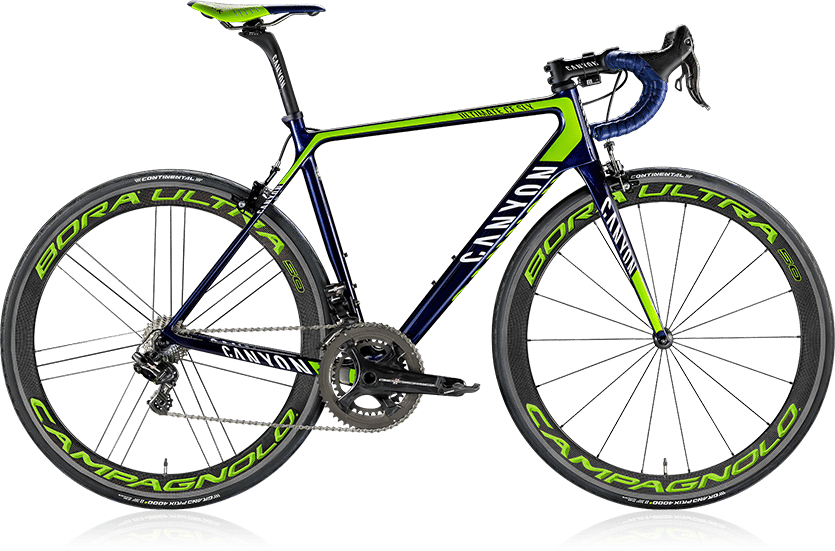

2014 Canyon Ultimate CF SLX MKI geometry
Full frame geometry for the 2014 Canyon Ultimate CF SLX MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/50 | 531 | 368 | 73.5 | 72 | 125 | 525 | 465 | 764 | 70 | 559 | 410 | 965 | 42 | 65 |
| XS/50 | 534 | 371 | 73.5 | 71.7 | 127 | 529 | 475 | 771 | 70 | 566 | 410 | 971 | 42 | 67 |
| S/53 | 546 | 374 | 73.5 | 72.5 | 138 | 537 | 515 | 798 | 70 | 566 | 410 | 971 | 42 | 62 |
| M/56 | 560 | 382 | 73.5 | 73.3 | 150 | 549 | 545 | 820 | 70 | 571 | 410 | 977 | 42 | 57 |
| L/58 | 579 | 394 | 73.5 | 73.3 | 170 | 566 | 570 | 843 | 70 | 589 | 410 | 994 | 42 | 57 |
| L/60 | 598 | 406 | 73.5 | 73.3 | 190 | 583 | 585 | 860 | 70 | 606 | 410 | 1012 | 42 | 57 |
| XL/60 | 598 | 405 | 73.5 | 73.3 | 190 | 583 | 595 | 865 | 70 | 605 | 410 | 1011 | 42 | 57 |
| 2XL/62 | 617 | 417 | 73.5 | 73.3 | 210 | 600 | 620 | 888 | 70 | 623 | 410 | 1028 | 42 | 57 |
| 3XL/65 | 636 | 428 | 73.5 | 73.3 | 230 | 616 | 645 | 911 | 70 | 640 | 410 | 1044 | 42 | 57 |
All measurements in millimetres unless marked (°) for angles.
