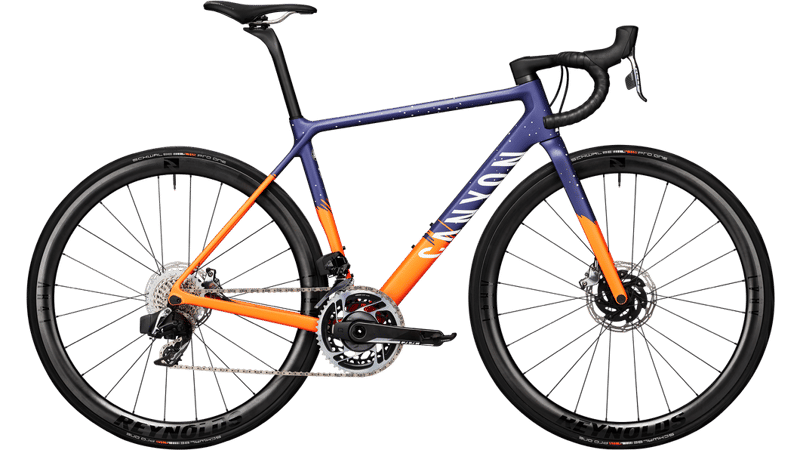

2021 Canyon Ultimate CF SLX 9 WMN geometry
Full frame geometry for the 2021 Canyon Ultimate CF SLX 9 WMN, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3XS | 486 | 350 | 73.8 | 70.5 | 100 | 491 | 406 | 694 | 60 | 416 | 956 |
| 2XS | 506 | 356 | 73.8 | 71.6 | 119 | 501 | 436 | 711 | 60 | 416 | 959 |
| XS | 528 | 368 | 73.8 | 71 | 113 | 521 | 466 | 745 | 72 | 416 | 981 |
| M | 573 | 389 | 73.8 | 72.8 | 154 | 555 | 526 | 799 | 72 | 416 | 999 |
| S | 651 | 378 | 73.8 | 72.3 | 133 | 537 | 496 | 772 | 72 | 415 | 986 |
All measurements in millimetres unless marked (°) for angles.
