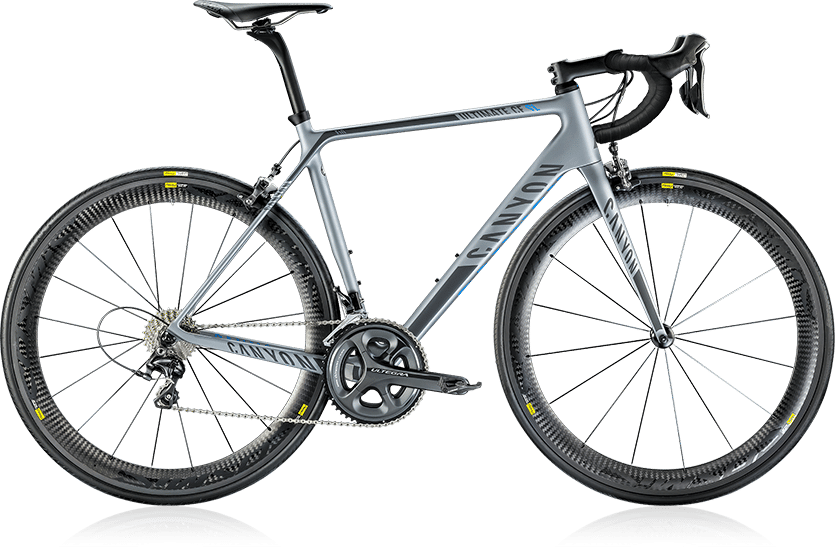

2014 Canyon Ultimate CF SL geometry
Full frame geometry for the 2014 Canyon Ultimate CF SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 531 | 368 | 73.5 | 72 | 125 | 525 | 465 | 768 | 68 | — | 410 | 965 | — | — |
| S | 546 | 375 | 73.5 | 72.5 | 138 | 537 | 505 | 797 | 68 | — | 410 | 973 | — | — |
| S/53 | 546 | 375 | 73.5 | 72.5 | 138 | 537 | 505 | 795 | 70 | 567 | 410 | 973 | 42 | 62 |
| M | 560 | 383 | 73.5 | 73.2 | 150 | 549 | 537 | 820 | 68 | — | 410 | 978 | — | — |
| M/56 | 560 | 383 | 73.5 | 73.3 | 150 | 549 | 537 | 818 | 70 | 572 | 410 | 978 | 42 | 57 |
| L | 579 | 395 | 73.5 | 73.2 | 170 | 566 | 563 | 843 | 68 | — | 410 | 995 | — | — |
| L/58 | 579 | 395 | 73.5 | 73.3 | 170 | 566 | 563 | 841 | 70 | 590 | 410 | 995 | 42 | 57 |
| XL | 598 | 406 | 73.5 | 73.2 | 190 | 583 | 585 | 864 | 68 | — | 410 | 1012 | — | — |
| 2XL | 617 | 417 | 73.5 | 73.2 | 210 | 600 | 610 | 887 | 68 | — | 410 | 1029 | — | — |
| 2XL/62 | 617 | 417 | 73.5 | 73.3 | 210 | 600 | 610 | 885 | 70 | 623 | 410 | 1029 | 42 | 57 |
| 3XL | 636 | 428 | 73.5 | 73.2 | 230 | 616 | 635 | 909 | 68 | — | 410 | 1045 | — | — |
| 3XL/65 | 636 | 428 | 73.5 | 73.3 | 230 | 616 | 635 | 907 | 70 | 640 | 410 | 1045 | 42 | 57 |
All measurements in millimetres unless marked (°) for angles.
