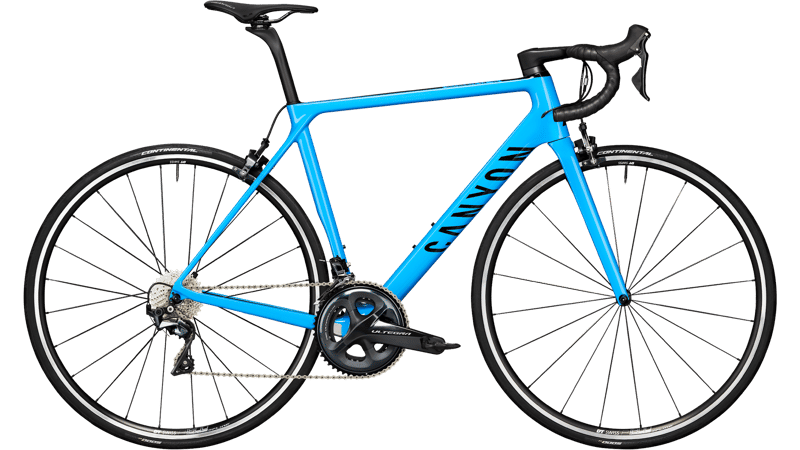

2021 Canyon Ultimate CF SL 8 geometry
Full frame geometry for the 2021 Canyon Ultimate CF SL 8, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2XS | 500 | 368 | 73.9 | 69.6 | 95 | 513 | 618 | 720 | 72 | 410 | 975 |
| XS | 522 | 378 | 73.8 | 71 | 113 | 529 | 648 | 748 | 72 | 410 | 980 |
| S | 546 | 385 | 73.8 | 72.3 | 136 | 543 | 678 | 775 | 70 | 410 | 985 |
| M | 567 | 391 | 73.8 | 73.3 | 155 | 556 | 708 | 801 | 70 | 410 | 988 |
| L | 592 | 399 | 73.8 | 73.3 | 181 | 571 | 738 | 828 | 70 | 410 | 1 |
| XL | 613 | 418 | 73.8 | 73.5 | 202 | 596 | 768 | 851 | 70 | 410 | 1 |
| 2XL | 631 | 428 | 73.8 | 73.8 | 219 | 612 | 798 | 874 | 70 | 410 | 1 |
All measurements in millimetres unless marked (°) for angles.
