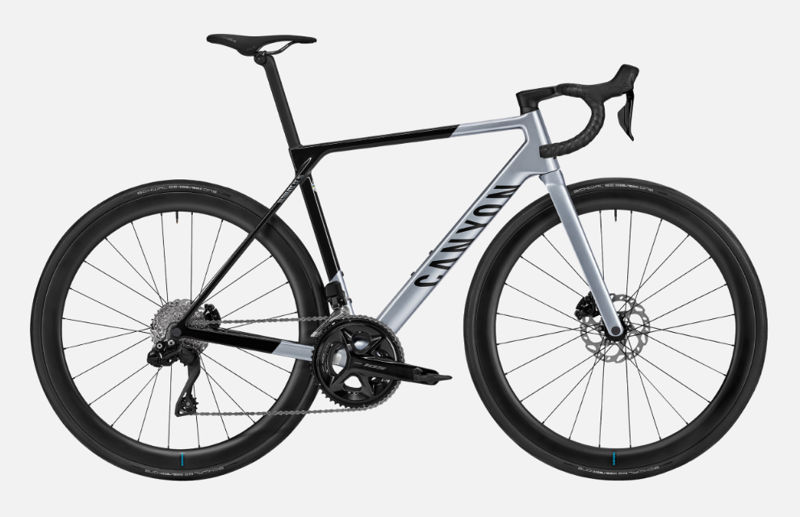

2025 Canyon Ultimate CF SL 7 geometry
Full frame geometry for the 2025 Canyon Ultimate CF SL 7, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 3XS | 483 | 358 | 73.5 | 70.2 | 104 | 497 | 390 | 60 | 405 |
| 2XS | 498 | 372 | 73.9 | 71.5 | 115 | 516 | 420 | 60 | 405 |
| XS | 520 | 378 | 73.9 | 71.2 | 107 | 529 | 450 | 73 | 410 |
| S | 539 | 390 | 73.9 | 72.8 | 121 | 546 | 480 | 73 | 410 |
| M | 560 | 393 | 73.9 | 73.3 | 142 | 555 | 510 | 73 | 410 |
| L | 580 | 401 | 73.9 | 73.3 | 162 | 569 | 540 | 73 | 413 |
| XL | 606 | 419 | 73.9 | 73.5 | 188 | 594 | 570 | 73 | 415 |
| 2XL | 624 | 429 | 73.9 | 73.8 | 206 | 610 | 600 | 73 | 415 |
All measurements in millimetres unless marked (°) for angles.
