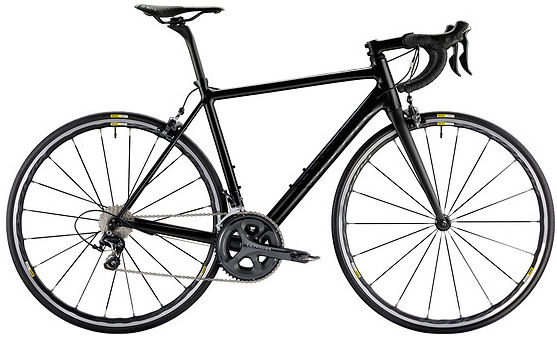

2017 Canyon Ultimate AL SLX geometry
Full frame geometry for the 2017 Canyon Ultimate AL SLX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 522 | 378 | 73.5 | 71 | 116 | 533 | 470 | 766 | 68 | 410 | 980 |
| S | 546 | 385 | 73.5 | 72.2 | 139 | 547 | 500 | 794 | 68 | 410 | 985 |
| M | 567 | 391 | 73.5 | 73.2 | 158 | 559 | 530 | 820 | 68 | 410 | 988 |
| L | 592 | 399 | 73.5 | 73.2 | 184 | 574 | 560 | 848 | 68 | 410 | 1003 |
| XL | 613 | 418 | 73.5 | 73.5 | 205 | 600 | 590 | 874 | 68 | 410 | 1026 |
| 2XL | 631 | 428 | 73.5 | 73.8 | 222 | 615 | 620 | 899 | 68 | 410 | 1039 |
All measurements in millimetres unless marked (°) for angles.
