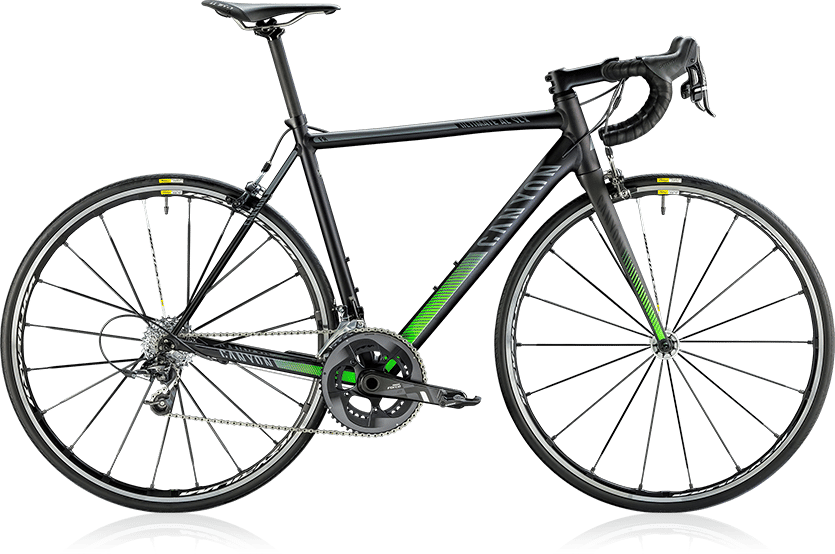

2014 Canyon Ultimate AL SLX MKI geometry
Full frame geometry for the 2014 Canyon Ultimate AL SLX MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/50 | 528 | 373 | 73.5 | 71 | 125 | 529 | 475 | 768 | 70 | 572 | 410 | 978 | 42 | 71 |
| XS/50 | 528 | 373 | 73.5 | 71 | 125 | 529 | 475 | 768 | 70 | 572 | 410 | 978 | 42 | 71 |
| S/53 | 542 | 376 | 73.5 | 71.5 | 138 | 537 | 510 | 793 | 70 | 575 | 410 | 982 | 42 | 68 |
| M/56 | 558 | 384 | 73.5 | 72.8 | 150 | 549 | 545 | 819 | 70 | 577 | 410 | 983 | 42 | 60 |
| L/58 | 579 | 395 | 73.5 | 73.8 | 170 | 566 | 570 | 843 | 70 | 585 | 410 | 995 | 42 | 54 |
| L/60 | 598 | 406 | 73.5 | 73.3 | 190 | 583 | 595 | 865 | 70 | 606 | 410 | 1012 | 42 | 57 |
| XL/60 | 598 | 406 | 73.5 | 73.8 | 190 | 583 | 595 | 865 | 70 | 601 | 410 | 1012 | 42 | 54 |
| 2XL/62 | 617 | 417 | 73.5 | 73.8 | 210 | 600 | 620 | 888 | 70 | 618 | 410 | 1029 | 42 | 54 |
| 3XL/65 | 626 | 428 | 73.5 | 73.8 | 230 | 616 | 645 | 906 | 70 | 632 | 410 | 1045 | 42 | 54 |
All measurements in millimetres unless marked (°) for angles.
