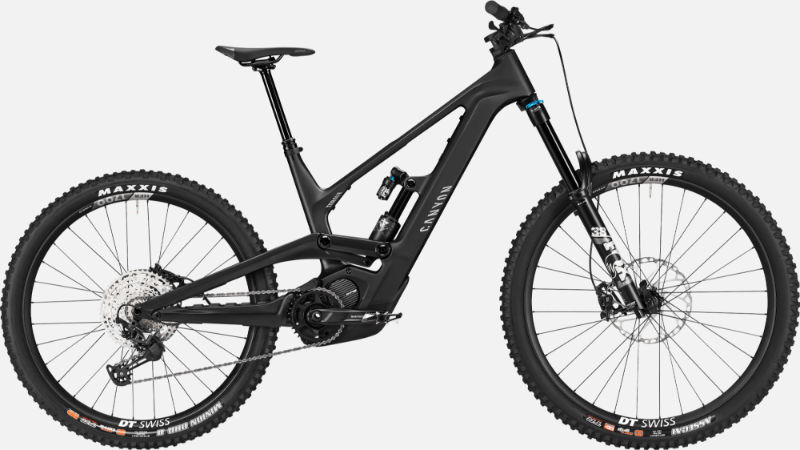

2025 Canyon Torque:ON CF geometry
Full frame geometry for the 2025 Canyon Torque:ON CF, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 639 | 450 | 77.5 | 63.5 | 105 | 592 | 395 | 738 | 32 | 445 | 1247 | 44 |
| M | 648 | 475 | 77.5 | 63.5 | 115 | 619 | 420 | 745 | 32 | 445 | 1276 | 44 |
| L | 657 | 500 | 77.5 | 63.5 | 125 | 646 | 435 | 765 | 32 | 445 | 1306 | 44 |
| XL | 666 | 525 | 77.5 | 63.5 | 135 | 673 | 460 | 777 | 32 | 445 | 1335 | 44 |
All measurements in millimetres unless marked (°) for angles.
