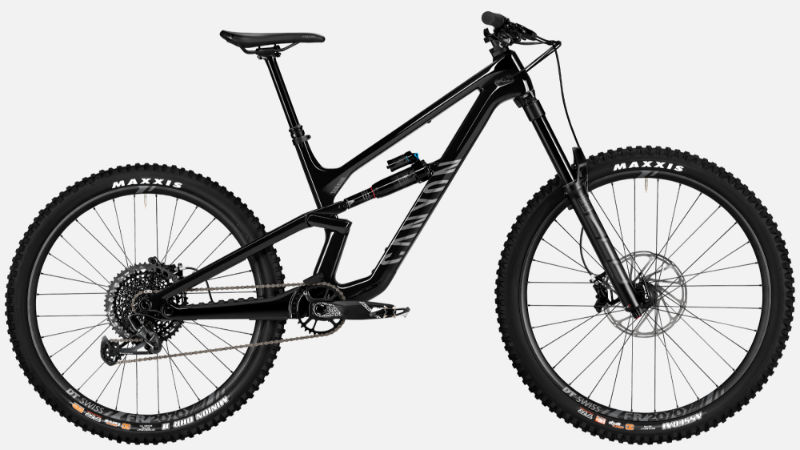

2025 Canyon Torque Mullet CF geometry
Full frame geometry for the 2025 Canyon Torque Mullet CF, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 624 | 440 | 77.5 | 63.5 | 100 | 578 | 395 | 761 | 30 | 435 | 1220 |
| M | 629 | 465 | 77.5 | 63.5 | 105 | 604 | 430 | 771 | 30 | 435 | 1248 |
| L | 638 | 490 | 77.5 | 63.5 | 115 | 631 | 445 | 773 | 30 | 435 | 1277 |
| XL | 647 | 515 | 77.5 | 63.5 | 125 | 658 | 460 | 778 | 30 | 435 | 1307 |
All measurements in millimetres unless marked (°) for angles.
