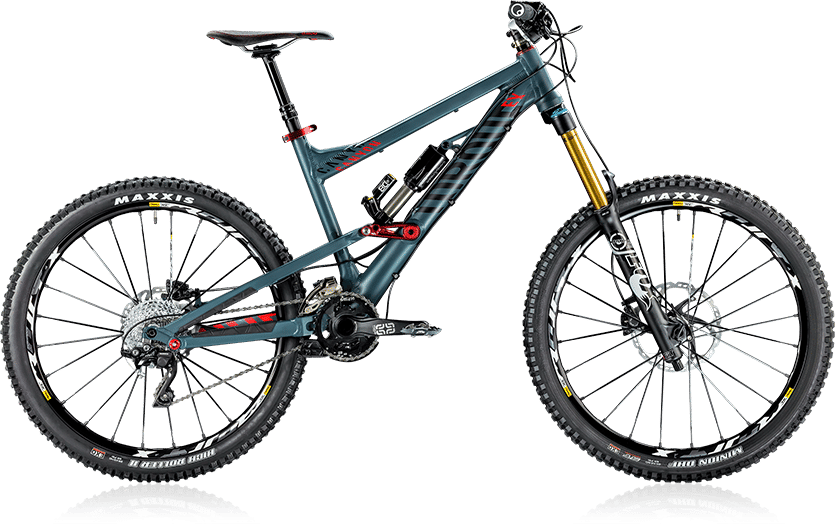

2015 Canyon Torque EX geometry
Full frame geometry for the 2015 Canyon Torque EX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S/16.5 | 593 | 391 | 73.4 | 65.9 | 125 | 570 | 390 | 816 | 13 | 425 | 1131 |
| M/18.5 | 602 | 407 | 73.4 | 65.9 | 135 | 587 | 440 | 824 | 13 | 425 | 1150 |
| L/20 | 611 | 436 | 73.4 | 65.9 | 145 | 622 | 490 | 846 | 13 | 425 | 1183 |
All measurements in millimetres unless marked (°) for angles.
