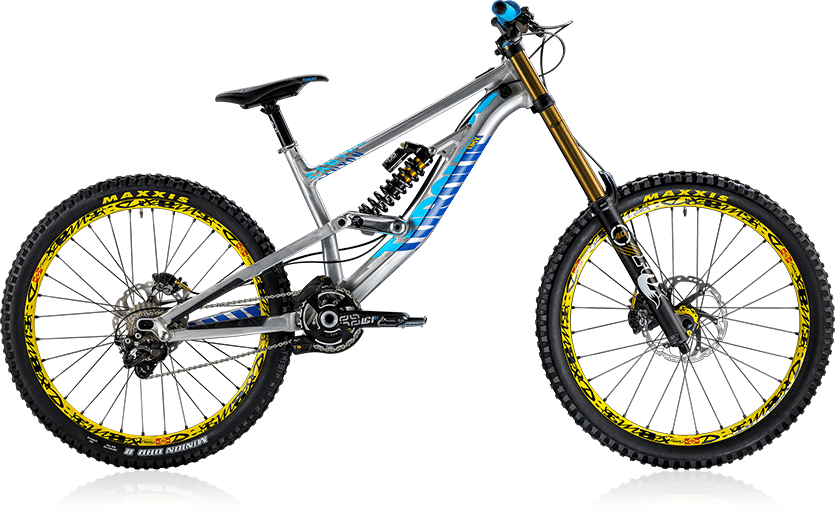

2015 Canyon Torque DHX geometry
Full frame geometry for the 2015 Canyon Torque DHX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 583 | 400 | 67 | 63 | 115 | 578 | 390 | 823 | 10 | 425 | 1178 |
| M | 592 | 430 | 67 | 63 | 125 | 611 | 400 | 833 | 10 | 425 | 1212 |
| L | 596 | 460 | 67 | 63 | 130 | 642 | 430 | 851 | 10 | 425 | 1244 |
All measurements in millimetres unless marked (°) for angles.
