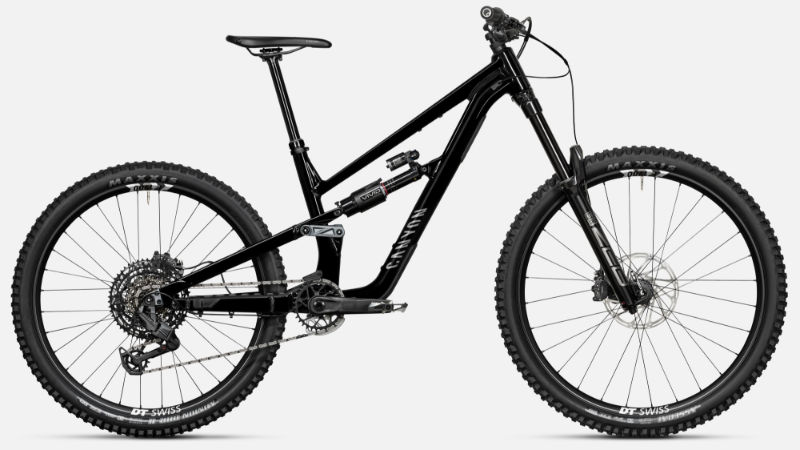

2027 Canyon Torque AL geometry
Full frame geometry for the 2027 Canyon Torque AL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 624 | 420 | 78.5 | 63.5 | 110 | 547 | 385 | 750 | 12 | 430 | 1204 | 44 |
| S | 634 | 445 | 78.5 | 63.5 | 100 | 574 | 405 | 756 | 12 | 430 | 1225 | 44 |
| M | 643 | 470 | 78.5 | 63.5 | 110 | 601 | 405 | 761 | 12 | 430 | 1254 | 44 |
| L | 652 | 495 | 78.5 | 63.5 | 120 | 628 | 420 | 767 | 12 | 430 | 1284 | 44 |
| XL | 656 | 520 | 78.5 | 63.5 | 125 | 653 | 450 | 771 | 12 | 430 | 1311 | 44 |
All measurements in millimetres unless marked (°) for angles.
