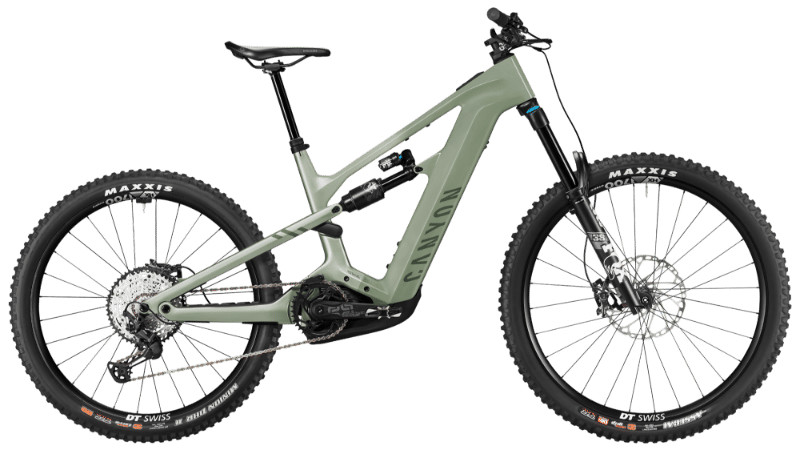

2025 Canyon Strive:ON CFR geometry
Full frame geometry for the 2025 Canyon Strive:ON CFR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 628 | 450 | 78 | 63.5 | 110 | 584 | 395 | 772 | 25 | 445 | 1245 | 44 |
| M | 637 | 475 | 78 | 63.5 | 120 | 610 | 420 | 777 | 25 | 445 | 1274 | 44 |
| L | 646 | 500 | 78 | 63.5 | 130 | 637 | 435 | 782 | 25 | 445 | 1304 | 44 |
| XL | 660 | 525 | 78 | 63.5 | 145 | 665 | 460 | 788 | 25 | 445 | 1336 | 44 |
All measurements in millimetres unless marked (°) for angles.
