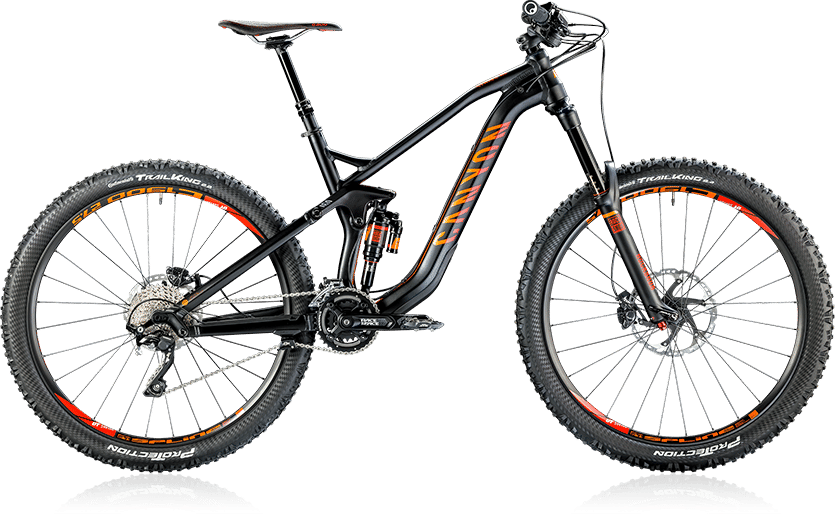

2015 Canyon Strive AL geometry
Full frame geometry for the 2015 Canyon Strive AL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 592 | 402 | 73.5 | 66 | 95 | 576 | 388 | 863 | 20 | 423 | 1132 |
| S | 606 | 422 | 73.5 | 66 | 115 | 600 | 430 | 892 | 20 | 423 | 1158 |
| M | 615 | 448 | 73.5 | 66 | 125 | 629 | 430 | 897 | 20 | 423 | 1188 |
| L | 627 | 468 | 73.5 | 66 | 135 | 648 | 460 | 919 | 20 | 423 | 1207 |
| XL | 643 | 487 | 73.5 | 66 | 155 | 658 | 500 | 947 | 20 | 423 | 1240 |
All measurements in millimetres unless marked (°) for angles.
