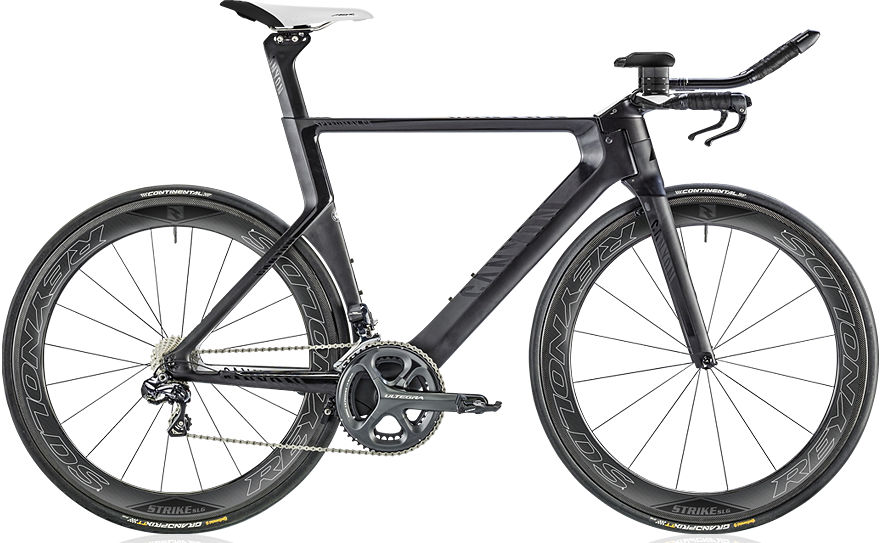

2013 Canyon Speedmax CF II geometry
Full frame geometry for the 2013 Canyon Speedmax CF II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 499 | 410 | 75.5 | 73.3 | 70 | 583 | 539 | 779 | 75 | 584 | 415 | 989 | 43 | 56 |
| M | 519 | 432 | 75.5 | 73.3 | 91 | 611 | 560 | 800 | 75 | 612 | 420 | 1022 | 43 | 56 |
| L | 539 | 457 | 75.5 | 73.3 | 112 | 642 | 581 | 821 | 75 | 643 | 420 | 1053 | 43 | 56 |
All measurements in millimetres unless marked (°) for angles.
