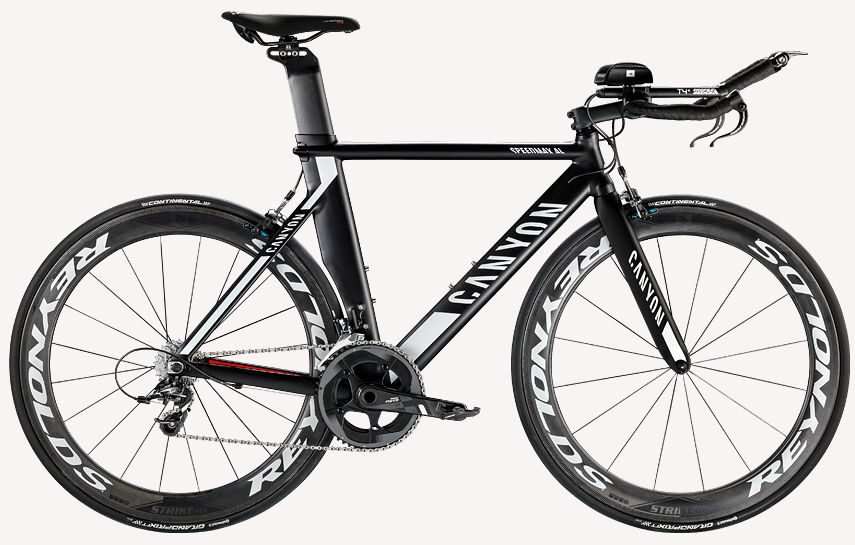

2014 Canyon Speedmax AL geometry
Full frame geometry for the 2014 Canyon Speedmax AL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 485 | 404 | 78 | 72.5 | 90 | 508 | 500 | 756 | 68 | 666 | 380 | 945 | 43 | 60 |
| S | 499 | 420 | 78 | 72.5 | 105 | 528 | 530 | 779 | 68 | 685 | 380 | 980 | 43 | 60 |
| M | 518 | 430 | 78 | 72.5 | 125 | 543 | 550 | 798 | 68 | 710 | 380 | 995 | 43 | 60 |
| L | 537 | 440 | 78 | 72.5 | 145 | 558 | 570 | 818 | 68 | 735 | 380 | 1010 | 43 | 60 |
| XL | 565 | 457 | 78 | 72.5 | 175 | 583 | 600 | 848 | 68 | 772 | 380 | 1035 | 43 | 60 |
All measurements in millimetres unless marked (°) for angles.
