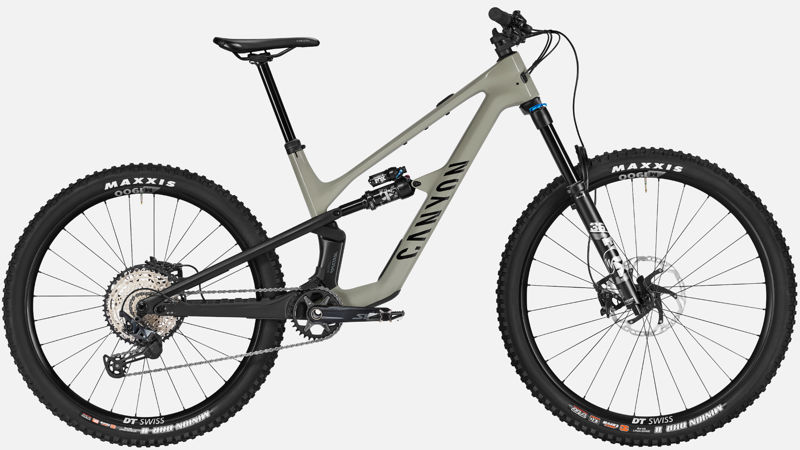

2024 Canyon Spectral CF geometry
Full frame geometry for the 2024 Canyon Spectral CF, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| L | 500 | 76.5 | 64 | 130 | 653 | 445 | 756 | 36 | 437 |
| M | 475 | 76.5 | 64 | 120 | 626 | 415 | 747 | 36 | 437 |
| S | 450 | 76.5 | 64 | 110 | 599 | 400 | 752 | 36 | 437 |
| XL | 525 | 76.5 | 64 | 140 | 680 | 455 | 762 | 36 | 437 |
| XS | 425 | 76.5 | 64 | 100 | 572 | 375 | 738 | 36 | 429 |
All measurements in millimetres unless marked (°) for angles.
