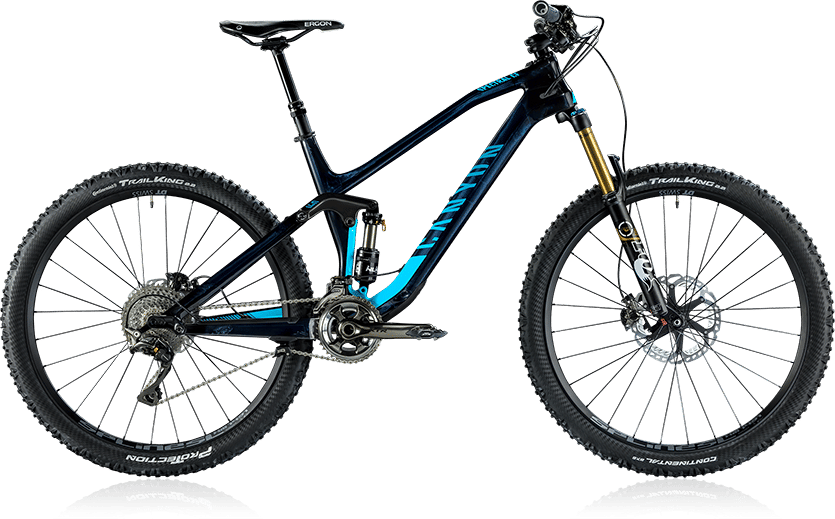

2015 Canyon Spectral CF MK I geometry
Full frame geometry for the 2015 Canyon Spectral CF MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 567 | 380 | 74.5 | 67 | 90 | 538 | 365 | 769 | 430 | 1089 |
| S | 580 | 405 | 74.5 | 67 | 100 | 566 | 395 | 771 | 425 | 1120 |
| M | 598 | 430 | 74.5 | 67 | 120 | 596 | 440 | 777 | 425 | 1153 |
| L | 621 | 455 | 74.5 | 67 | 145 | 627 | 480 | 788 | 425 | 1188 |
| XL | 644 | 480 | 74.5 | 67 | 170 | 659 | 520 | 800 | 425 | 1222 |
All measurements in millimetres unless marked (°) for angles.
