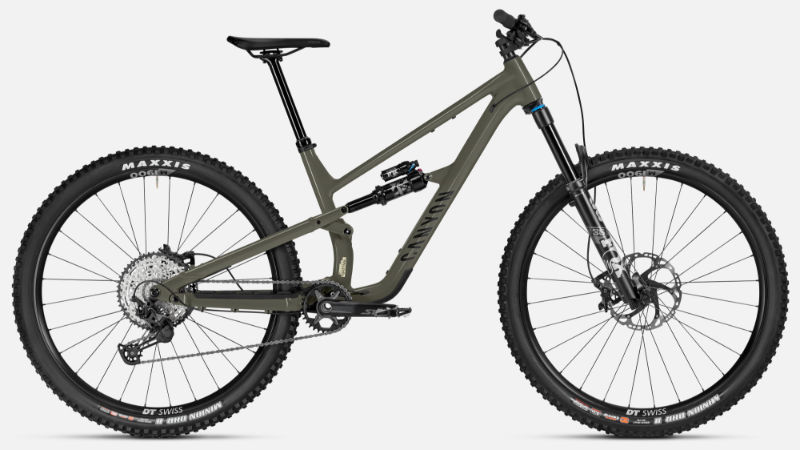

2025 Canyon Spectral AL geometry
Full frame geometry for the 2025 Canyon Spectral AL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 612 | 425 | 76.5 | 64 | 100 | 572 | 375 | 744 | 36 | 437 | 1192 |
| S | 621 | 450 | 76.5 | 64 | 110 | 599 | 400 | 749 | 36 | 437 | 1221 |
| M | 630 | 475 | 76.5 | 64 | 120 | 626 | 415 | 757 | 36 | 437 | 1251 |
| L | 639 | 500 | 76.5 | 64 | 130 | 653 | 445 | 761 | 36 | 437 | 1280 |
| XL | 648 | 525 | 76.5 | 64 | 140 | 680 | 455 | 762 | 36 | 437 | 1309 |
All measurements in millimetres unless marked (°) for angles.
