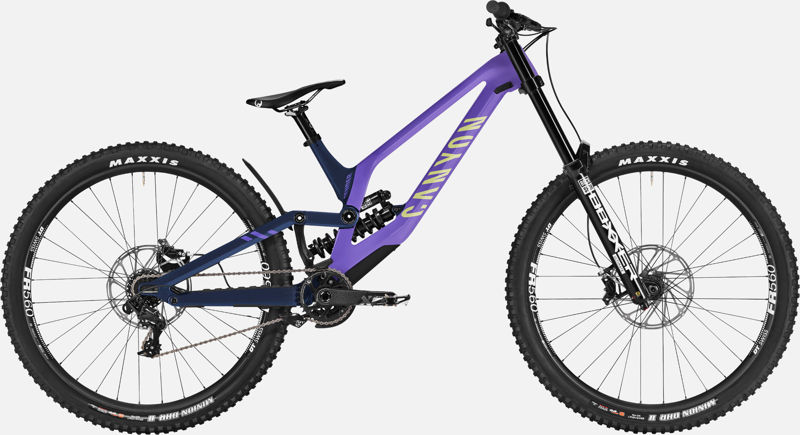

2024 Canyon Sender CFR 29 LTD geometry
Full frame geometry for the 2024 Canyon Sender CFR 29 LTD, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 623 | 460 | 65.7 | 63 | 100 | 587 | 400 | 746 | 21 | 446 | 1.3 |
| L | 632 | 485 | 65.9 | 63 | 110 | 619 | 420 | 750 | 21 | 446 | 1.3 |
| XL | 636 | 510 | 66.5 | 63 | 115 | 645 | 440 | 755 | 21 | 446 | 1.3 |
All measurements in millimetres unless marked (°) for angles.
