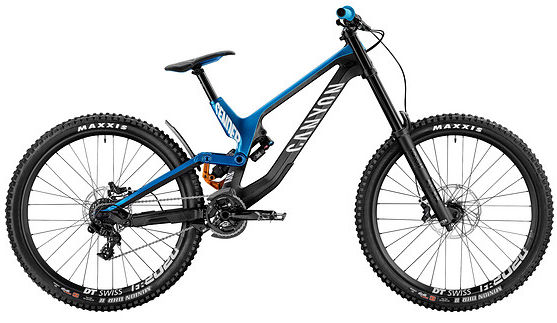

2017 Canyon Sender CF geometry
Full frame geometry for the 2017 Canyon Sender CF, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 599 | 420 | 74 | 63 | 110 | 562 | 400 | 823 | 30 | 430 | 1207 |
| M | 607 | 440 | 74 | 63 | 120 | 586 | 400 | 827 | 30 | 430 | 1232 |
| L | 616 | 460 | 74 | 63 | 130 | 611 | 450 | 857 | 30 | 430 | 1256 |
| XL | 625 | 480 | 74 | 63 | 140 | 635 | 450 | 862 | 30 | 430 | 1281 |
All measurements in millimetres unless marked (°) for angles.
