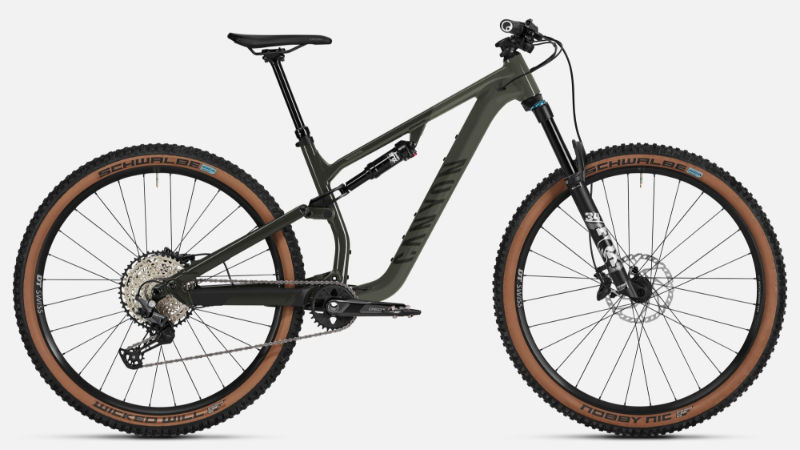

2025 Canyon Neuron AL geometry
Full frame geometry for the 2025 Canyon Neuron AL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 587 | 410 | 76 | 66 | 90 | 556 | 390 | 756 | 18 | 430 | 1139 |
| S | 596 | 430 | 76 | 66 | 100 | 579 | 390 | 760 | 18 | 430 | 1164 |
| M | 626 | 455 | 76 | 66 | 110 | 611 | 425 | 760 | 38 | 440 | 1203 |
| L | 639 | 480 | 76 | 66 | 125 | 639 | 460 | 766 | 38 | 440 | 1234 |
| XL | 656 | 510 | 76 | 66 | 143 | 674 | 500 | 772 | 38 | 440 | 1271 |
All measurements in millimetres unless marked (°) for angles.
