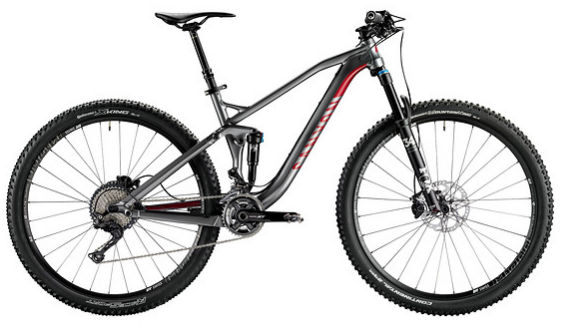

2017 Canyon Neuron AL 29 MK I geometry
Full frame geometry for the 2017 Canyon Neuron AL 29 MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 598 | 426 | 73.8 | 69.3 | 100 | 599 | 440 | 793 | 27 | 445 | 1136 |
| L | 617 | 451 | 73.8 | 69.3 | 120 | 630 | 480 | 798 | 27 | 445 | 1168 |
| XL | 640 | 476 | 73.8 | 69.3 | 145 | 661 | 520 | 803 | 27 | 445 | 1201 |
All measurements in millimetres unless marked (°) for angles.
