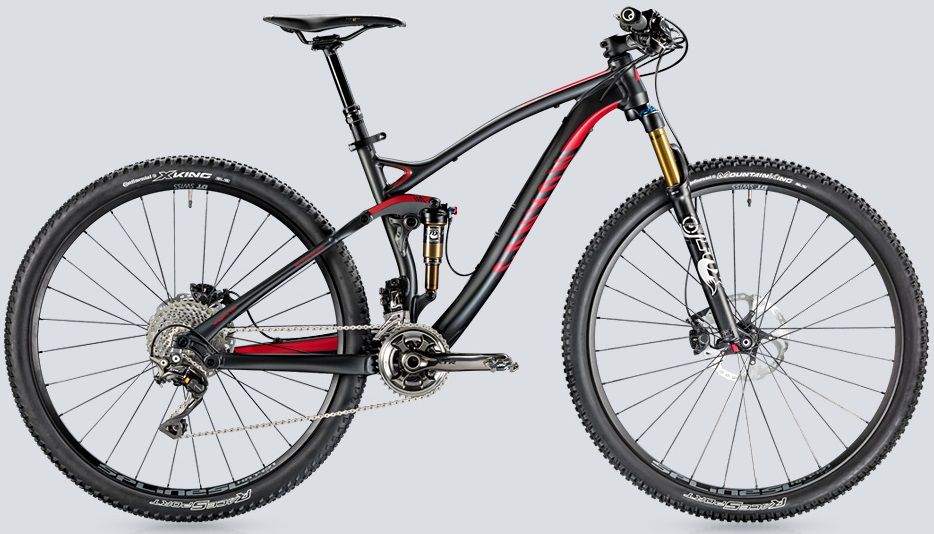

2015 Canyon Nerve Al 29 geometry
Full frame geometry for the 2015 Canyon Nerve Al 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M/17.5 | 598 | 410 | 74 | 70 | 100 | 581 | 445 | 802 | 38 | 450 | 1111 |
| S/16 | 598 | 390 | 74 | 70 | 100 | 561 | 405 | 790 | 38 | 450 | 1091 |
| L/19 | 617 | 430 | 74 | 70 | 120 | 607 | 485 | 820 | 38 | 450 | 1138 |
| XL/21.5 | 635 | 450 | 74 | 70 | 140 | 632 | 545 | 863 | 38 | 450 | 1165 |
All measurements in millimetres unless marked (°) for angles.
