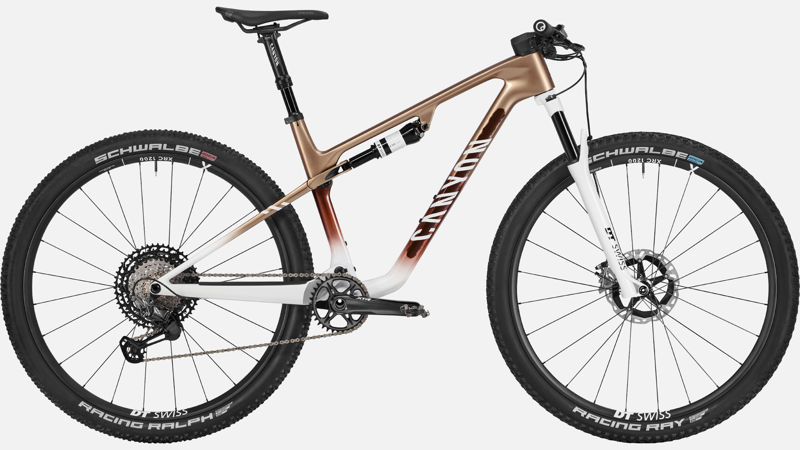

2024 Canyon Lux World Cup CFR Untamed geometry
Full frame geometry for the 2024 Canyon Lux World Cup CFR Untamed, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 577 | 430 | 75 | 68.5 | 90 | 581 | 415 | 777 | 38 | 432 | 1.1 |
| XS | 577 | 410 | 75 | 68.5 | 90 | 564 | 375 | 777 | 38 | 432 | 1.1 |
| M | 582 | 450 | 75 | 68.5 | 95 | 602 | 455 | 780 | 38 | 432 | 1.1 |
| L | 596 | 470 | 75 | 68.5 | 110 | 625 | 495 | 784 | 38 | 432 | 1.2 |
| XL | 610 | 490 | 75 | 68.5 | 125 | 648 | 535 | 793 | 38 | 432 | 1.2 |
All measurements in millimetres unless marked (°) for angles.
