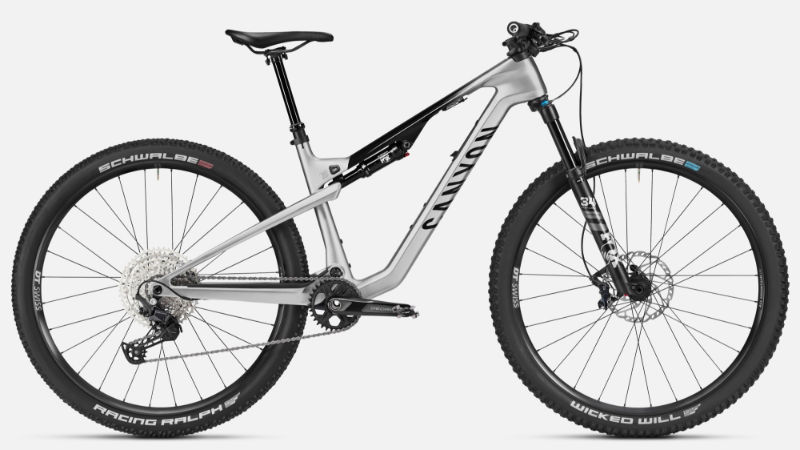

2025 Canyon Lux Trail CF geometry
Full frame geometry for the 2025 Canyon Lux Trail CF, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 589 | 438 | 76 | 67 | 90 | 585 | 420 | 768 | 38 | 435 | 1155 | 44 |
| XS | 589 | 412 | 76 | 67 | 90 | 559 | 415 | 768 | 38 | 435 | 1129 | 44 |
| M | 598 | 460 | 76 | 67 | 100 | 609 | 420 | 772 | 38 | 435 | 1180 | 44 |
| L | 612 | 480 | 76 | 67 | 115 | 633 | 450 | 777 | 38 | 435 | 1206 | 44 |
| XL | 626 | 500 | 76 | 67 | 130 | 656 | 480 | 783 | 38 | 435 | 1232 | 44 |
All measurements in millimetres unless marked (°) for angles.
