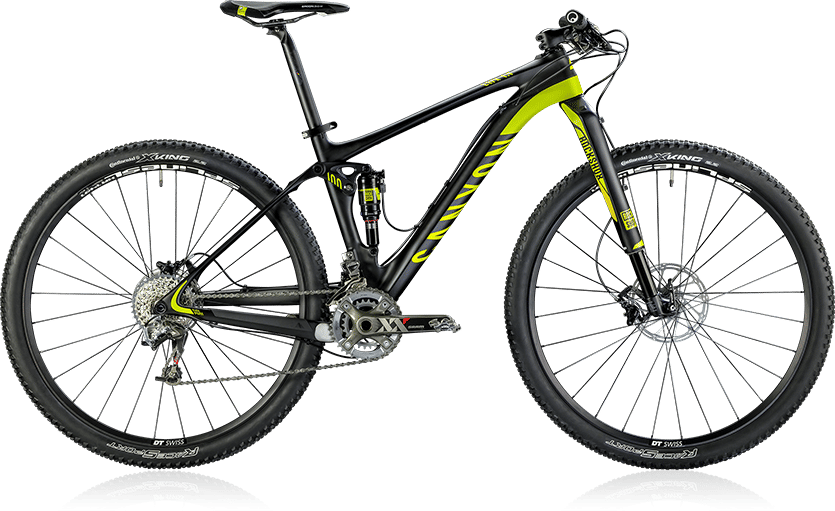

2015 Canyon Lux CF 29 geometry
Full frame geometry for the 2015 Canyon Lux CF 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S/16 | 582 | 393 | 74 | 70 | 92 | 560 | 395 | 800 | 40 | 450 | 1087 |
| M/17.5 | 594 | 415 | 74 | 70 | 105 | 585 | 445 | 810 | 40 | 450 | 1114 |
| L/19 | 604 | 433 | 74 | 70 | 115 | 606 | 485 | 816 | 40 | 450 | 1135 |
| XL/21.5 | 616 | 455 | 74 | 70 | 128 | 632 | 535 | 844 | 40 | 450 | 1162 |
All measurements in millimetres unless marked (°) for angles.
