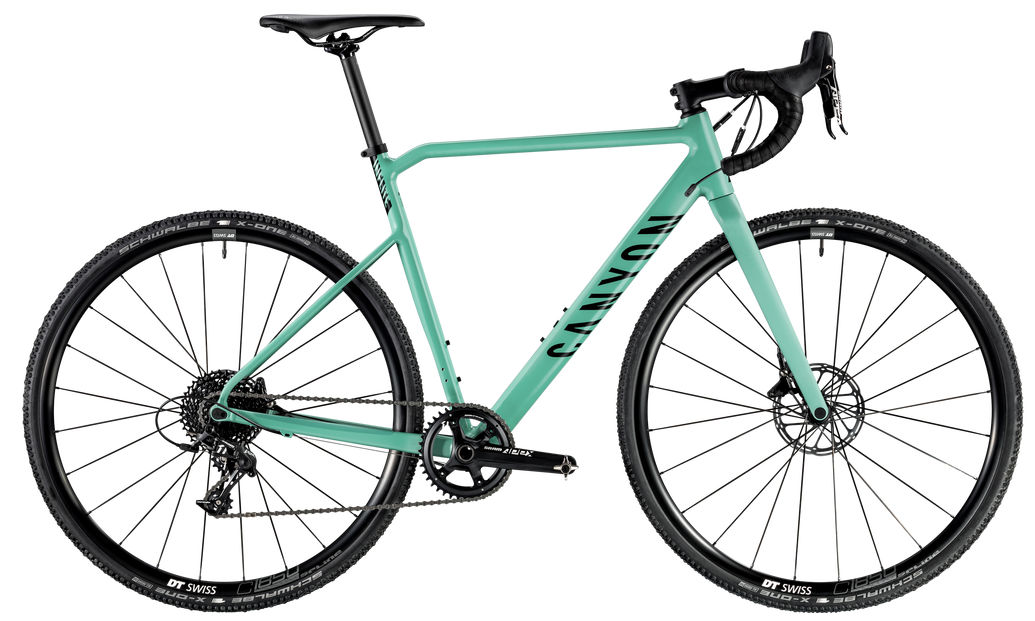

2019 Canyon Inflite AL MK II geometry
Full frame geometry for the 2019 Canyon Inflite AL MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 3XS | 487 | 357 | 73.5 | 70.2 | 94 | 501 | 422 | 415 | 970 |
| 2XS | 510 | 371 | 73.5 | 71.5 | 113 | 522 | 452 | 415 | 980 |
| XS | 527 | 376 | 73.5 | 71 | 102 | 532 | 482 | 425 | 1000 |
| S | 547 | 388 | 73.5 | 72.2 | 119 | 550 | 512 | 425 | 1006 |
| M | 572 | 393 | 73.5 | 72.5 | 146 | 562 | 542 | 425 | 1018 |
| L | 593 | 402 | 73.5 | 72.5 | 168 | 578 | 572 | 425 | 1034 |
| XL | 616 | 418 | 73.5 | 72.7 | 192 | 601 | 602 | 425 | 1055 |
| 2XL | 637 | 428 | 73.5 | 72.7 | 214 | 617 | 632 | 425 | 1072 |
All measurements in millimetres unless marked (°) for angles.
