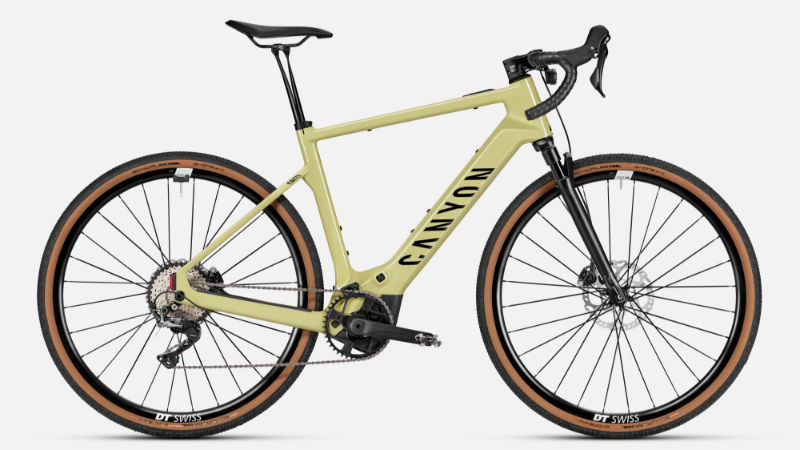

2025 Canyon Grizl:ONfly CF geometry
Full frame geometry for the 2025 Canyon Grizl:ONfly CF, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 574 | 381 | 74 | 69.5 | 117 | 546 | 462 | 784 | 72 | 445 | 1056 |
| S | 592 | 398 | 74 | 69.5 | 136 | 568 | 492 | 807 | 72 | 445 | 1080 |
| M | 611 | 403 | 74 | 69.5 | 156 | 578 | 522 | 832 | 72 | 445 | 1092 |
| L | 630 | 416 | 74 | 69.5 | 176 | 597 | 552 | 854 | 72 | 445 | 1112 |
| XL | 650 | 431 | 74 | 69.5 | 198 | 617 | 582 | 878 | 72 | 445 | 1134 |
All measurements in millimetres unless marked (°) for angles.
