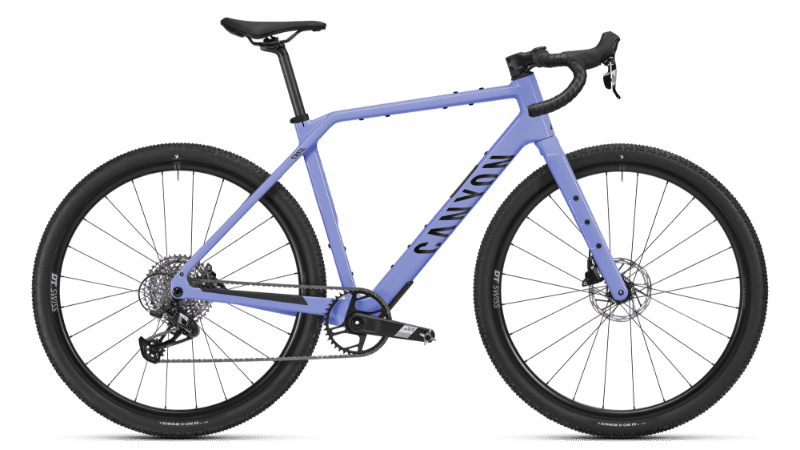

2026 Canyon Grizl CF geometry
Full frame geometry for the 2026 Canyon Grizl CF, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2XS | 550 | 369 | 73.5 | 68.8 | 120 | 532 | 432 | 764 | 75 | 440 | 1047 |
| XS | 559 | 380 | 73.5 | 69.5 | 126 | 545 | 462 | 785 | 75 | 440 | 1054 |
| S | 578 | 388 | 73.5 | 70.5 | 141 | 559 | 492 | 810 | 75 | 440 | 1059 |
| M | 596 | 404 | 73.5 | 71 | 158 | 581 | 522 | 826 | 75 | 440 | 1076 |
| L | 619 | 420 | 73.5 | 71 | 183 | 603 | 552 | 861 | 75 | 440 | 1100 |
| XL | 638 | 429 | 73.5 | 71 | 203 | 618 | 582 | 883 | 75 | 440 | 1115 |
| 2XL | 660 | 448 | 73.5 | 71 | 226 | 643 | 612 | 892 | 75 | 440 | 1142 |
All measurements in millimetres unless marked (°) for angles.
