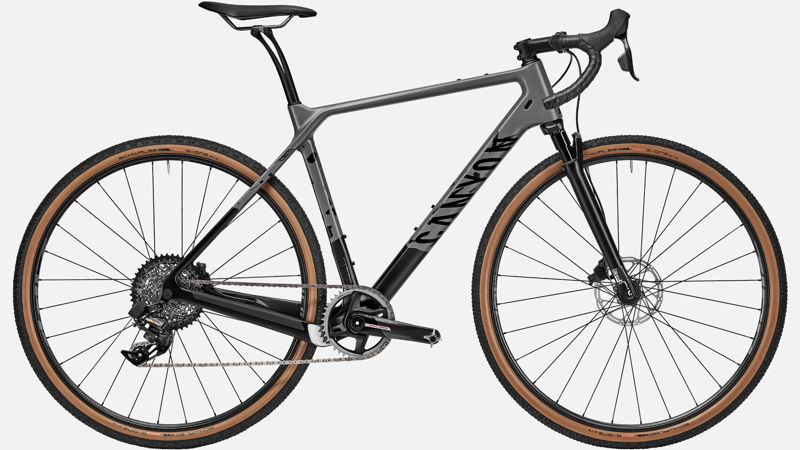

2024 Canyon Grizl CF SLX Trail geometry
Full frame geometry for the 2024 Canyon Grizl CF SLX Trail, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 556 | 397 | 73.5 | 71 | 118 | 552 | 492 | 75 | 435 |
| M | 579 | 402 | 73.5 | 72.3 | 138 | 564 | 522 | 75 | 435 |
| L | 605 | 409 | 73.5 | 72.5 | 164 | 578 | 552 | 75 | 435 |
| XL | 626 | 427 | 73.5 | 72.8 | 185 | 602 | 582 | 75 | 435 |
| 2XL | 644 | 436 | 73.5 | 72.8 | 204 | 617 | 612 | 75 | 435 |
All measurements in millimetres unless marked (°) for angles.
