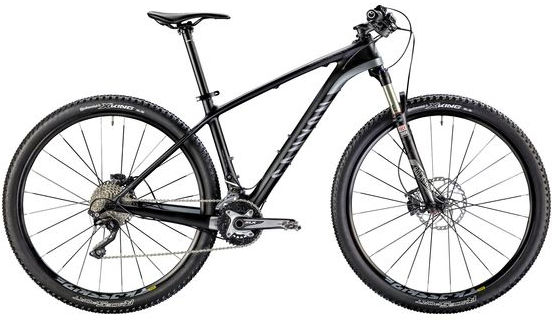

2016 Canyon Grand Canyon CF geometry
Full frame geometry for the 2016 Canyon Grand Canyon CF, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 610 | 415 | 74 | 70 | 100 | 590 | 440 | 802 | 60 | 434 | 1097 |
| S | 610 | 395 | 74 | 70 | 100 | 570 | 405 | 796 | 60 | 434 | 1076 |
| L | 624 | 431 | 74 | 70 | 115 | 610 | 485 | 822 | 60 | 434 | 1117 |
| XL | 638 | 447 | 74 | 70 | 130 | 630 | 545 | 853 | 60 | 434 | 1138 |
All measurements in millimetres unless marked (°) for angles.
