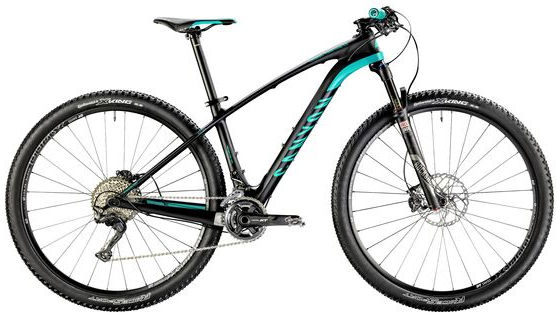

2016 Canyon Grand Canyon CF Wmn geometry
Full frame geometry for the 2016 Canyon Grand Canyon CF Wmn, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 610 | 415 | 74 | 70 | 100 | 590 | 440 | 802 | 20 | 434 | 1097 |
| S | 610 | 395 | 74 | 70 | 100 | 570 | 405 | 796 | 20 | 434 | 1076 |
| L | 624 | 431 | 74 | 70 | 115 | 610 | 485 | 822 | 20 | 434 | 1107 |
All measurements in millimetres unless marked (°) for angles.
